Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.
  2. Remove the roof trim.

    (Refer to Body (Interior and Exterior) - "ROOF TRIM ASSEMBLY ")

  3. Disconnect the connector (A) from the curtain airbag module.

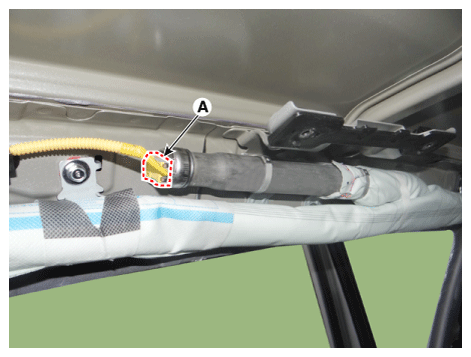

    Fig 1: Disconnecting Connector From Curtain Airbag Module
    G12329722Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the curtain airbag bolts and nuts and then remove the curtain airbag.
