[Liftgate Trim]

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Liftgate pull handle caps (A).

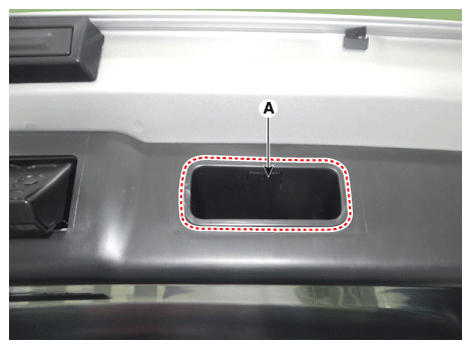

    Fig 1: Locating Liftgate Pull Handle Caps
    G12332112Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the Liftgate trim (A) after loosening the mounting screws and clips.

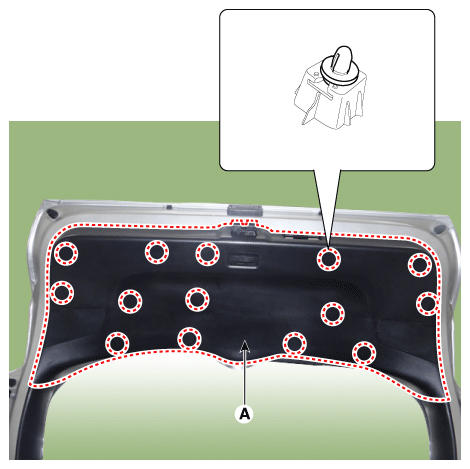

    Fig 2: Locating Liftgate Trim Mounting Screws And Clips
    G12332113Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.

    Information

    Replace any damaged clips.
