[Liftgate Side Trim]

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

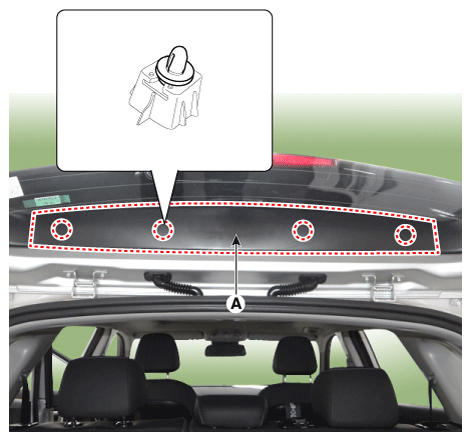

Remove the Liftgate trim (A).

Fig 1: Removing Liftgate Trim
Courtesy of KIA MOTORS AMERICA, INC.

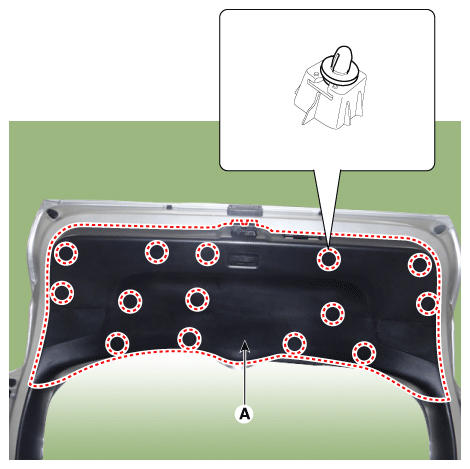

Remove the Liftgate upper trim (A).

Fig 2: Removing Liftgate Upper Trim
Courtesy of KIA MOTORS AMERICA, INC.

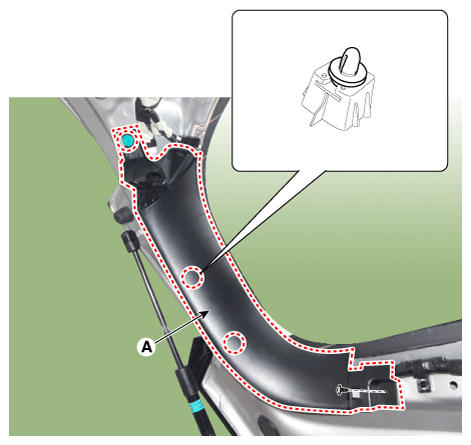

Remove the Liftgate side trim (A) after loosening the mounting screw.

Fig 3: Removing Liftgate Side Trim Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
