Bulb Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

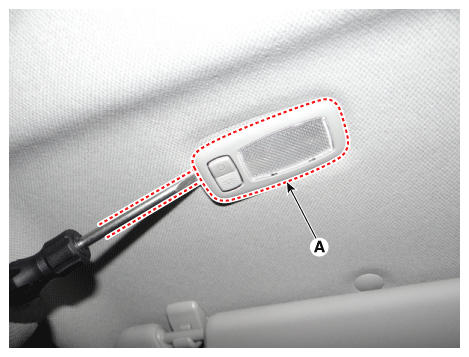

  1. Detach the vanity lamp (A) using a flat-tip screwdriver.
    Fig 1: Detaching Vanity Lamp Using Flat-Tip Screwdriver
    G12334890Courtesy of KIA MOTORS AMERICA, INC.

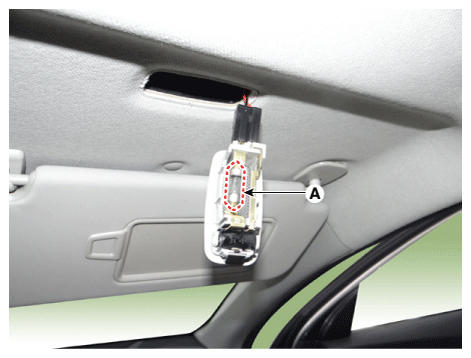

  2. Remove the vanity lamp bulb (A).
    Fig 2: Removing Vanity Lamp Bulb
    G12334891Courtesy of KIA MOTORS AMERICA, INC.
