Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Check for intensity of new rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.

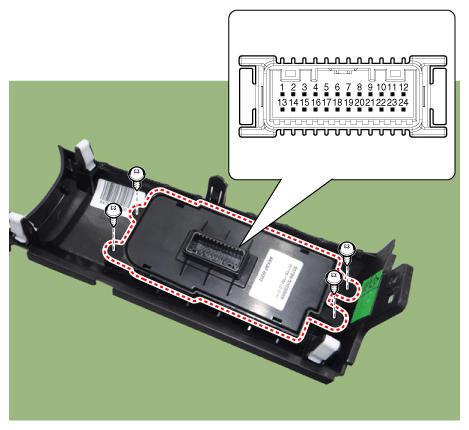

Fig 1: Checking Intensity Of New Rheostat Switch

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Rheostat Switch Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
