Circuit Inspection: Notes

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

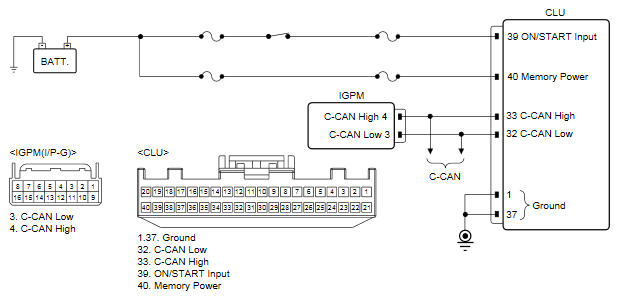

Fig 1: CLU System Circuit
G12328332Courtesy of KIA MOTORS AMERICA, INC.
CLUSTER CONNECTOR INSPECTION SPECIFICATION

Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 Cluster connector 39/40 (Power) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect auxiliary battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 Cluster connector 1/37 (Ground) Chassis ground - below 1Ω
Good
No Good
