Circuit Inspection: Notes

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

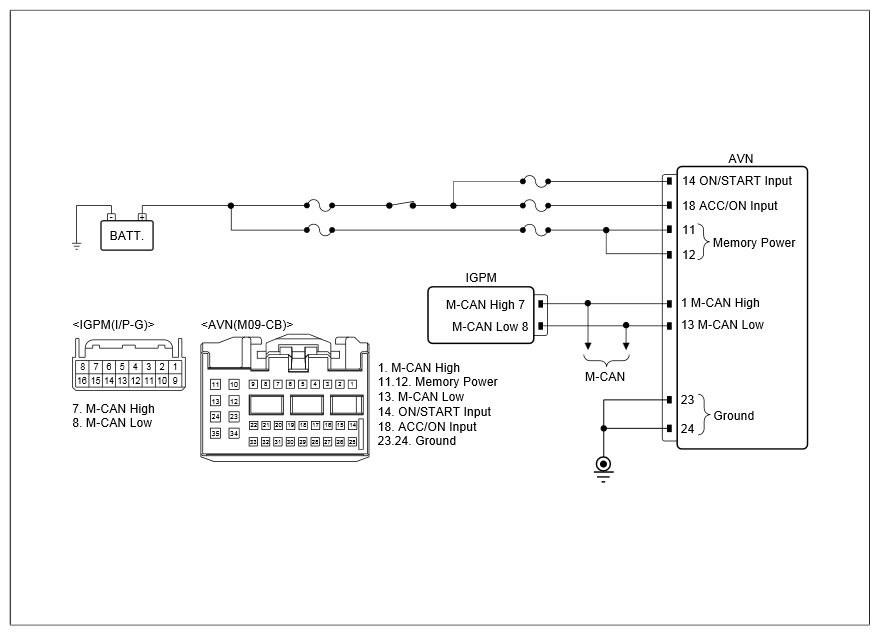

Fig 1: IGPM System Circuit

Courtesy of KIA MOTORS AMERICA, INC.

AVN CONNECTOR INSPECTION SPECIFICATION

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	AVN connector	14/18 (Input)	Chassis ground	-	B+
	AVN connector	11/12 (Power)	Chassis ground	-	B+
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	AVN connector	23/24 (Ground)	Chassis ground	-	below 1Ω

Good	Go to "CAN INSPECTION " procedure.
No Good	Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
