Monitor DTC Status

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with GDS/KDS.
Fig 1

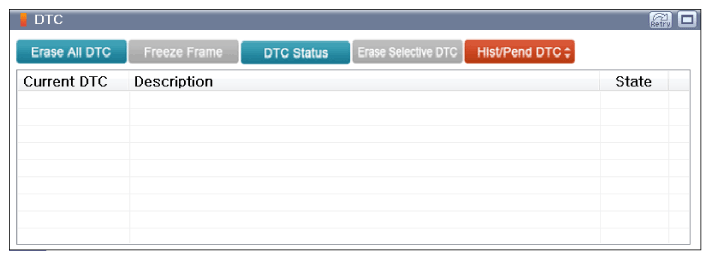

Fig 1: Screen Display - DTC Description
G12330578Courtesy of KIA MOTORS AMERICA, INC.
DTC Exist
No DTC
