Section 131 (HEV Control System Diagnosis)
>>
DTC U0110: Lost Communication With Drive Motor Control Module (P-CAN)
>>
Component Location
>>
Component Location
Component Location
WARNING:
This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

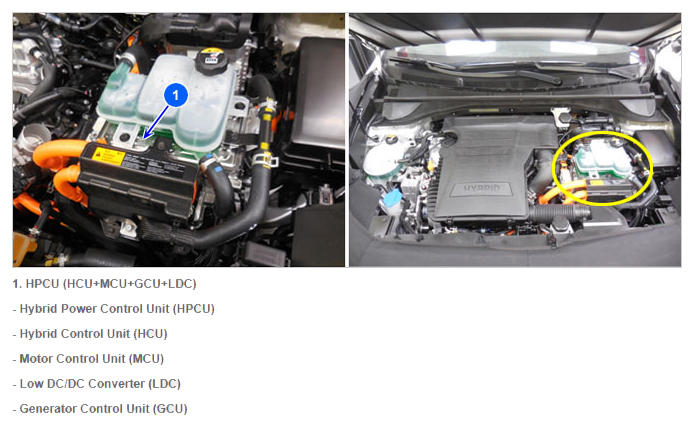

Fig 1: Locating (HPCU) Hybrid Powertrain Control Unit - (HCU+MCU+GCU+LDC) Components
Courtesy of KIA MOTORS AMERICA, INC.
