Vehicle S/W Management: Notes

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Check the connector status of the HCA after removing the undercover under the vehicle.
- If the connector is not properly connected, check the system after connecting the connector normally.
- Check the HCA connector terminal for corrosion.
- If the engine clutch system is leaking, replace the leaking area.
- If there is no connector defect or corrosion, proceed to step 2.
Clear the DTC and use the KDS/GDS to perform "Engine Clutch/Motor Resolver Adaption" and check the DTC.
- If the same DTC occurs, proceed to step 3.
- If the same DTC does not occur, check whether another DTC has occurred.
- If the "Engine Clutch/Motor Resolver Adaption" fails, take action according to the reason for failure.
Check the following parts in current data at ignition "ON" (Not READY) after ignition "OFF" for 5s.
- If the operating position of the engine clutch actuator is more than -4.0mm, replace the HCA.
- Replace the HCA if the operating position of the engine clutch actuator is located near -4.5mm but the operating pressure of the engine clutch actuator is over 1.4 bar.
After replacing the engine clutch actuator, (1)"Initialization of the engine clutch inspection line learning and diagnostic information"→(2)"Removal of air from clutch hydraulic pressure line"→(3)"Engine Clutch/Motor Resolver Adaption"→(4)"Stabilization of the engine clutch hardware transfer torque" must be sequentially performed.
* If the SOC is less than 35% and the gear is P position in the HEV "Ready" state, the engine will operate and the SOC will be charged.

* When "Removal Of Air From Engine Clutch Hydraulic Pressure Line" is performed after replacing the engine clutch system, the brake oil temperature must be over 20°C (68°F) to perform normally.

Inspection Condition	Inspection Procedure	Reference

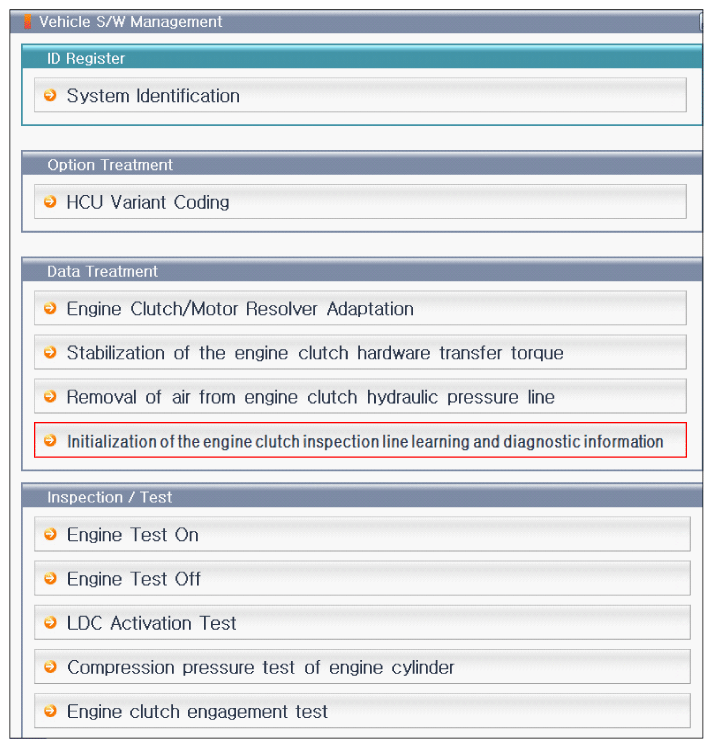

Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Perform "Vehicle S/W Management" of concerned component with GDS/KDS.	Fig 1 - Fig 4

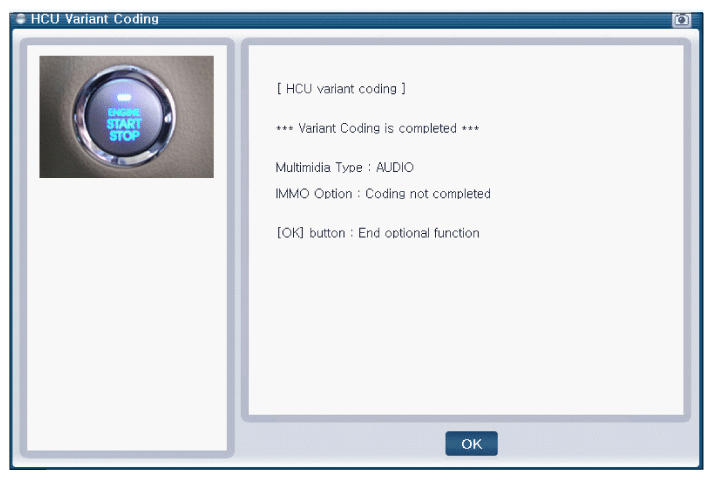

Fig 1: Screen Display - HCU Variant Coding Procedure (1 Of 4)

G12330986

Courtesy of KIA MOTORS AMERICA, INC.

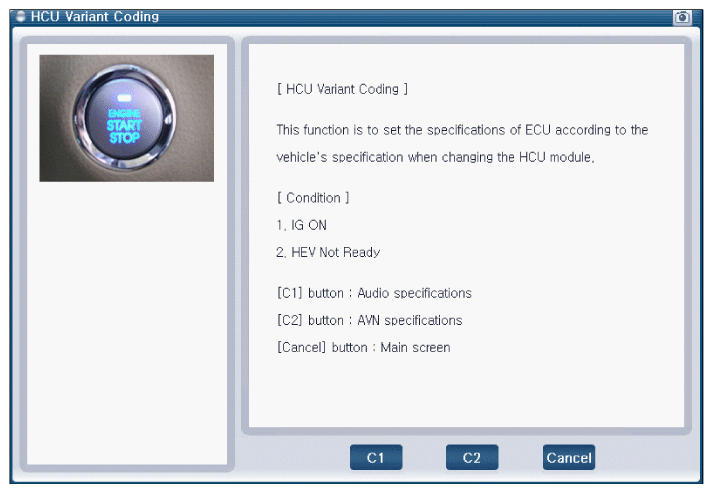

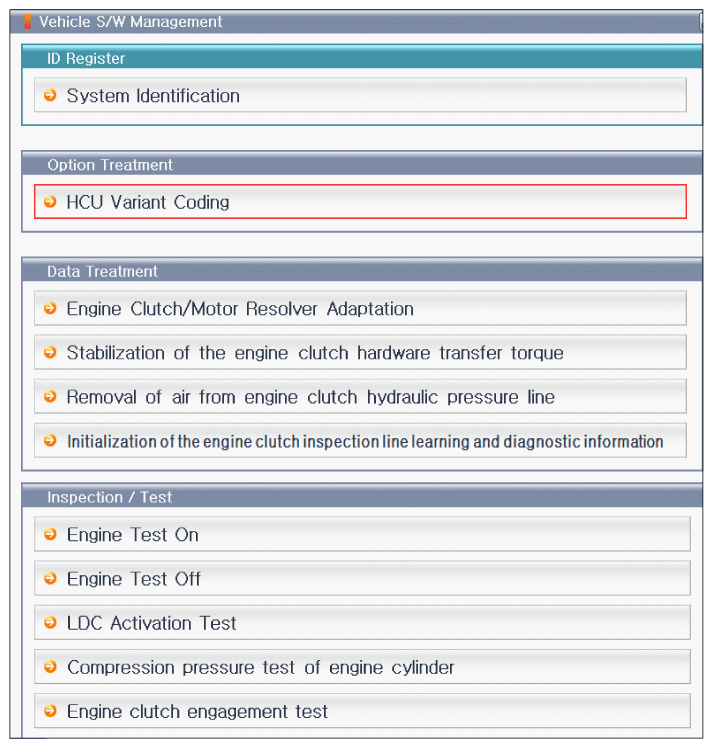

Fig 2: Screen Display - HCU Variant Coding Procedure (2 Of 4)

G12330987

Courtesy of KIA MOTORS AMERICA, INC.

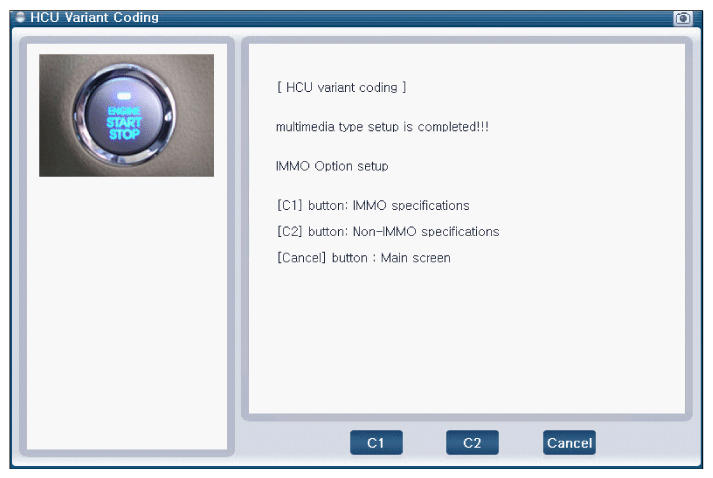

Fig 3: Screen Display - HCU Variant Coding Procedure (3 Of 4)

G12330988

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - HCU Variant Coding Procedure (4 Of 4)

G12330989

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION:

Check the connector status of the HCA after removing the undercover under the vehicle.
- If the connector is not properly connected, check the system after connecting the connector normally.
- Check the HCA connector terminal for corrosion.
- If the engine clutch system is leaking, replace the leaking area.
- If there is no connector defect or corrosion, proceed to step 2.
Clear the DTC and use the KDS/GDS to perform "Engine Clutch/Motor Resolver Adaption" and check the DTC.
- If the same DTC occurs, proceed to step 3.
- If the same DTC does not occur, check whether another DTC has occurred.
- If the "Engine Clutch/Motor Resolver Adaption" fails, take action according to the reason for failure.
Check the following parts in current data at ignition "ON" (Not READY) after ignition "OFF" for 5s.
- If the operating position of the engine clutch actuator is more than -4.0mm, replace the HCA.
- Replace the HCA if the operating position of the engine clutch actuator is located near -4.5mm but the operating pressure of the engine clutch actuator is over 1.4 bar.
After replacing the engine clutch actuator, (1)"Initialization of the engine clutch inspection line learning and diagnostic information"→(2)"Removal of air from clutch hydraulic pressure line"→(3)"Engine Clutch/Motor Resolver Adaption"→(4)"Stabilization of the engine clutch hardware transfer torque" must be sequentially performed.
* If the SOC is less than 35% and the gear is P position in the HEV "Ready" state, the engine will operate and the SOC will be charged.

* When "Removal Of Air From Engine Clutch Hydraulic Pressure Line" is performed after replacing the engine clutch system, the brake oil temperature must be over 20°C (68°F) to perform normally.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Perform "Vehicle S/W Management" of concerned component with GDS/KDS.	Fig 5 to Fig 8 Fig 9 to Fig 13 Fig 14 to Fig 17 Fig 18 to Fig 21

Fig 5: Screen Display - Initialization Of Engine Clutch Inspection Line Learning And Diagnostic Information Procedure (1 Of 4)

G12330990

Courtesy of KIA MOTORS AMERICA, INC.

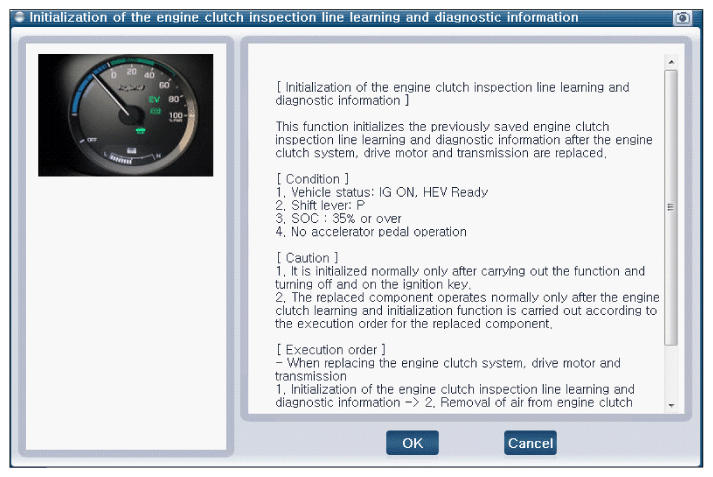

Fig 6: Screen Display - Initialization Of Engine Clutch Inspection Line Learning And Diagnostic Information Procedure (2 Of 4)

G12330991

Courtesy of KIA MOTORS AMERICA, INC.

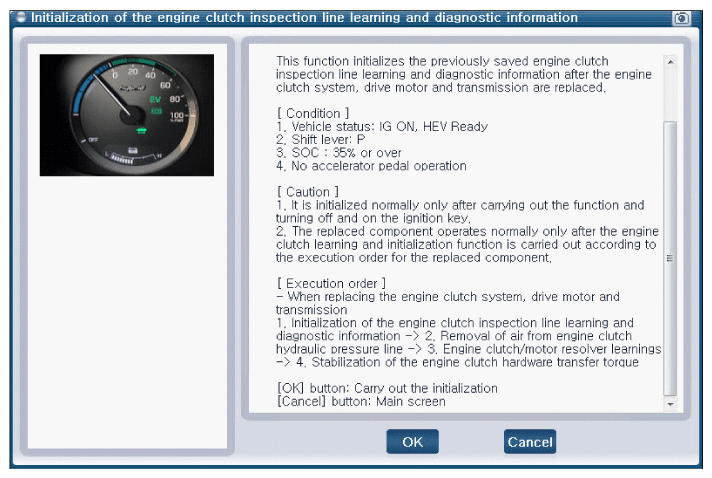

Fig 7: Screen Display - Initialization Of Engine Clutch Inspection Line Learning And Diagnostic Information Procedure (3 Of 4)

G12330992

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Screen Display - Initialization Of Engine Clutch Inspection Line Learning And Diagnostic Information Procedure (4 Of 4)

G12330993

Courtesy of KIA MOTORS AMERICA, INC.

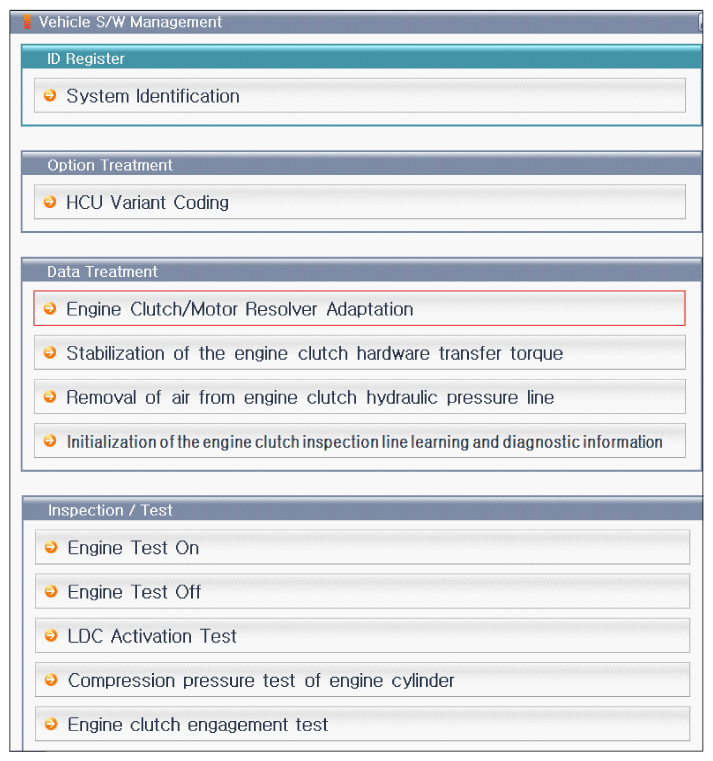

Fig 9: Screen Display - Removal Of Air From Clutch Hydraulic Pressure Line Procedure (1 Of 5)

G12330994

Courtesy of KIA MOTORS AMERICA, INC.

Fig 10: Screen Display - Removal Of Air From Clutch Hydraulic Pressure Line Procedure (2 Of 5)

G12330995

Courtesy of KIA MOTORS AMERICA, INC.

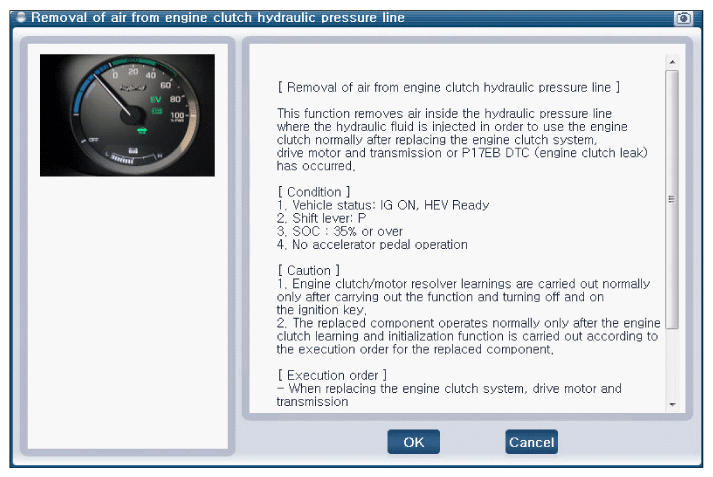

Fig 11: Screen Display - Removal Of Air From Clutch Hydraulic Pressure Line Procedure (3 Of 5)

G12330996

Courtesy of KIA MOTORS AMERICA, INC.

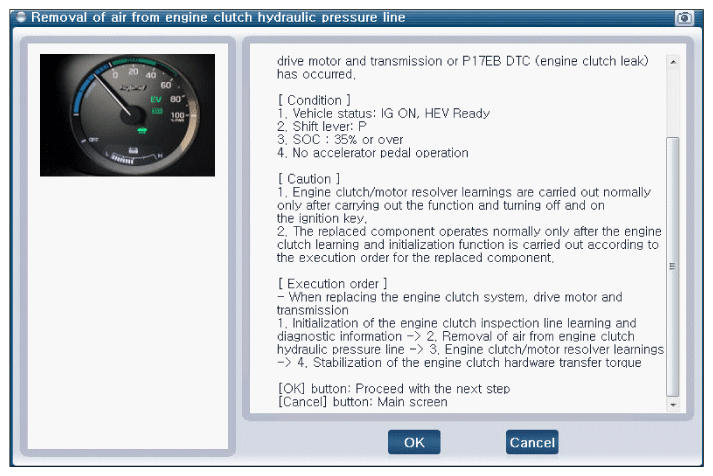

Fig 12: Screen Display - Removal Of Air From Clutch Hydraulic Pressure Line Procedure (4 Of 5)

G12330997

Courtesy of KIA MOTORS AMERICA, INC.

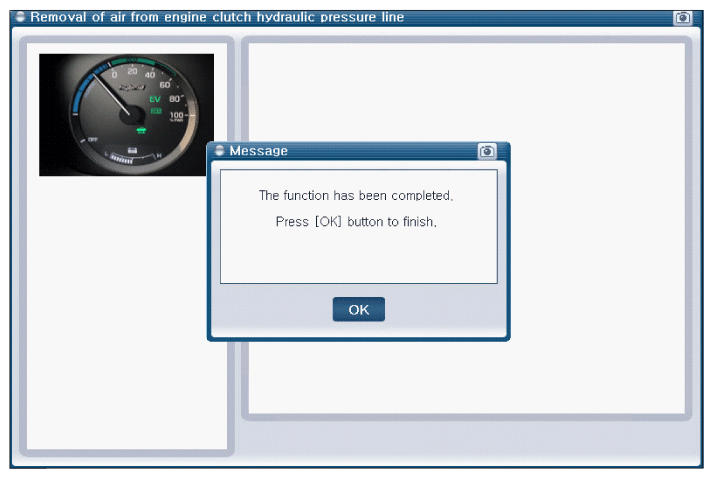

Fig 13: Screen Display - Removal Of Air From Clutch Hydraulic Pressure Line Procedure (5 Of 5)

G12330998

Courtesy of KIA MOTORS AMERICA, INC.

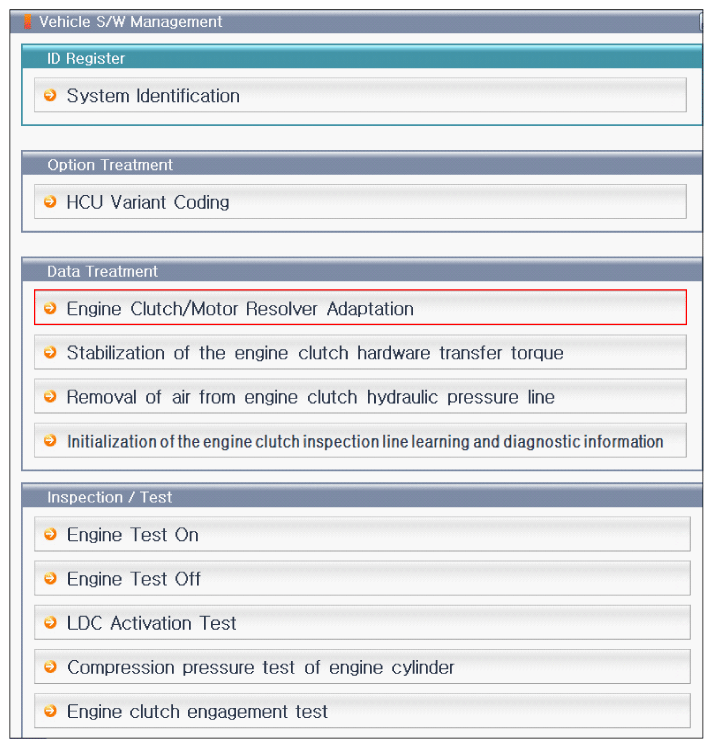

Fig 14: Screen Display - Engine Clutch/Motor Resolver Adaption Procedure (1 Of 4)

G12330999

Courtesy of KIA MOTORS AMERICA, INC.

Fig 15: Screen Display - Engine Clutch/Motor Resolver Adaption Procedure (2 Of 4)

G12331000

Courtesy of KIA MOTORS AMERICA, INC.

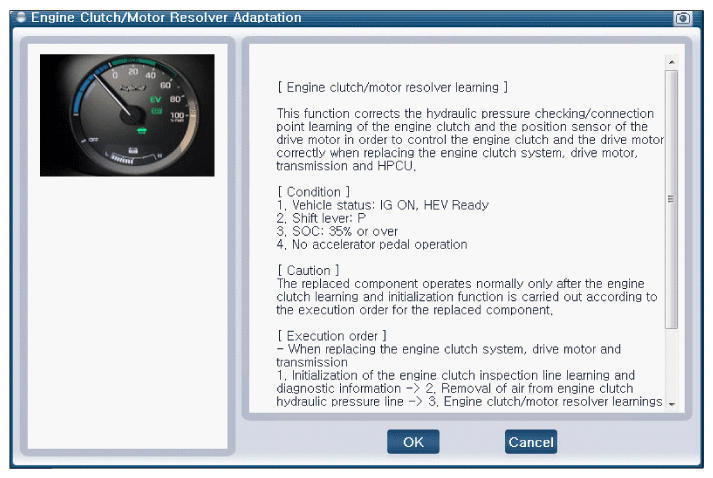

Fig 16: Screen Display - Engine Clutch/Motor Resolver Adaption Procedure (3 Of 4)

G12331001

Courtesy of KIA MOTORS AMERICA, INC.

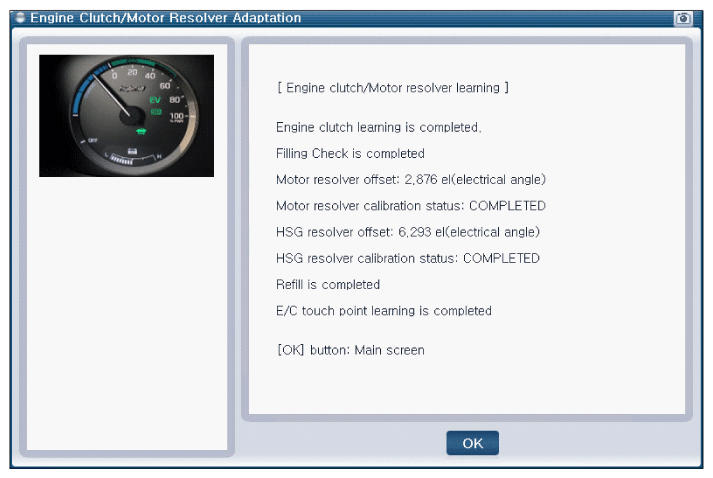

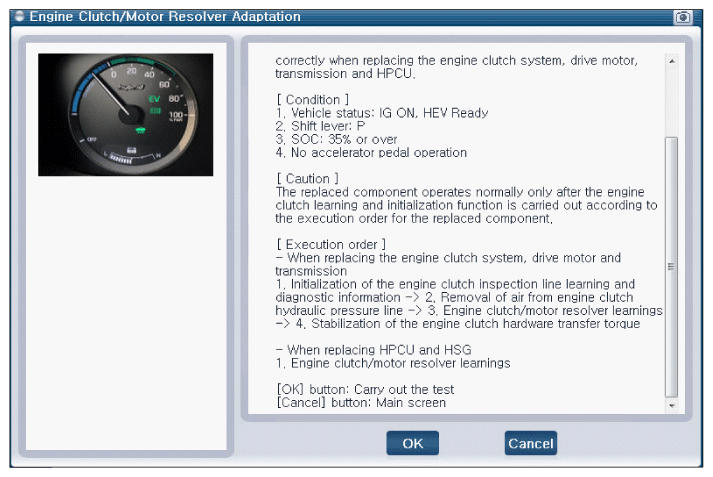

Fig 17: Screen Display - Engine Clutch/Motor Resolver Adaption Procedure (4 Of 4)

G12331002

Courtesy of KIA MOTORS AMERICA, INC.

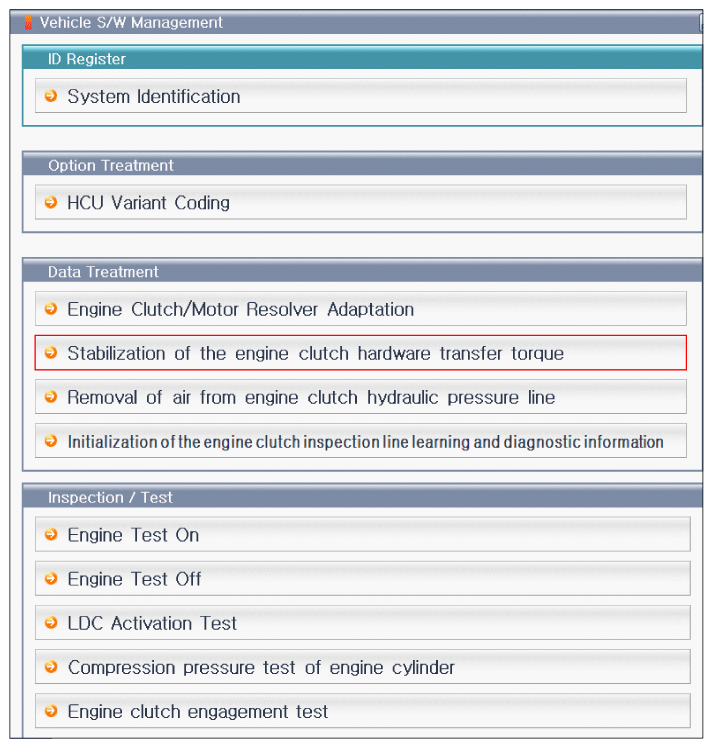

Fig 18: Screen Display - Stabilization Of Engine Clutch Hardware Transfer Torque Procedure (1 Of 4)

G12331003

Courtesy of KIA MOTORS AMERICA, INC.

Fig 19: Screen Display - Stabilization Of Engine Clutch Hardware Transfer Torque Procedure (2 Of 4)

G12331004

Courtesy of KIA MOTORS AMERICA, INC.

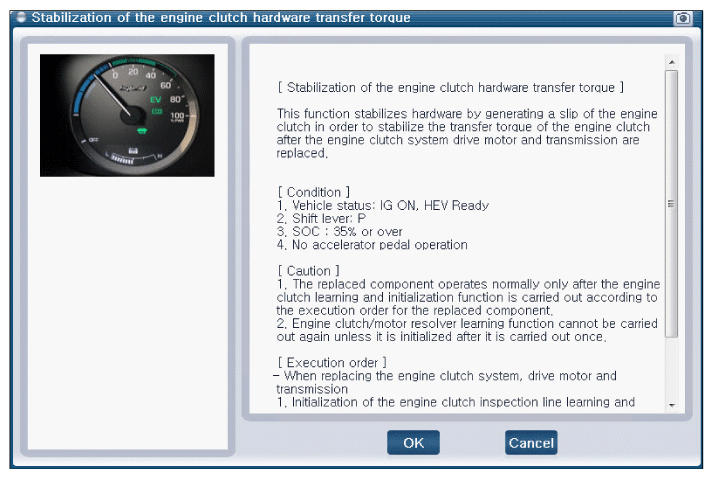

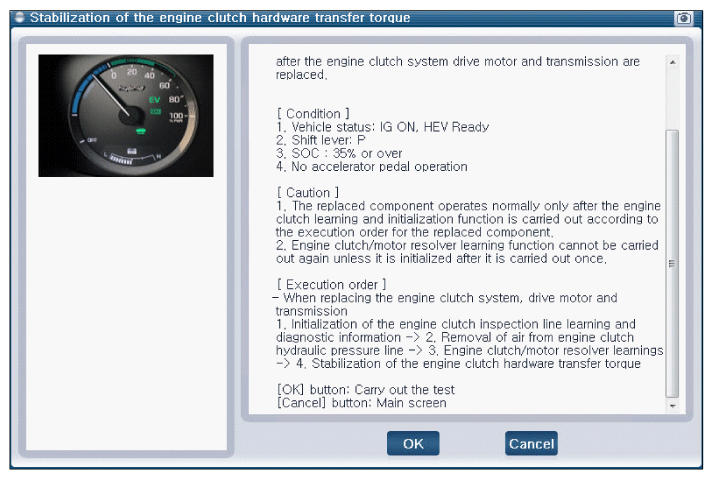

Fig 20: Screen Display - Stabilization Of Engine Clutch Hardware Transfer Torque Procedure (3 Of 4)

G12331005

Courtesy of KIA MOTORS AMERICA, INC.

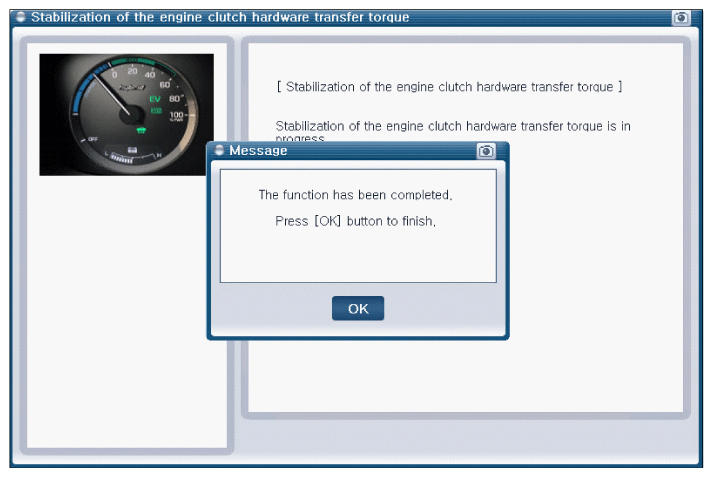

Fig 21: Screen Display - Stabilization Of Engine Clutch Hardware Transfer Torque Procedure (4 Of 4)

G12331006

Courtesy of KIA MOTORS AMERICA, INC.

Method to confirm the reasons when "Vehicle S/W Management" is fail
- Perform the inspection procedure after check the "HCU Error Code" and "LuK Error Code" of KDS/GDS when the "Vehicle S/W Management" related to the engine clutch is fail.
