Component Inspection

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON" and Engine "OFF".	Connect KDS/GDS to Data Link Connector (DLC). Perform "A/C Compressor Test (ECV Type)" with KDS/GDS	Fig 1 to Fig 5

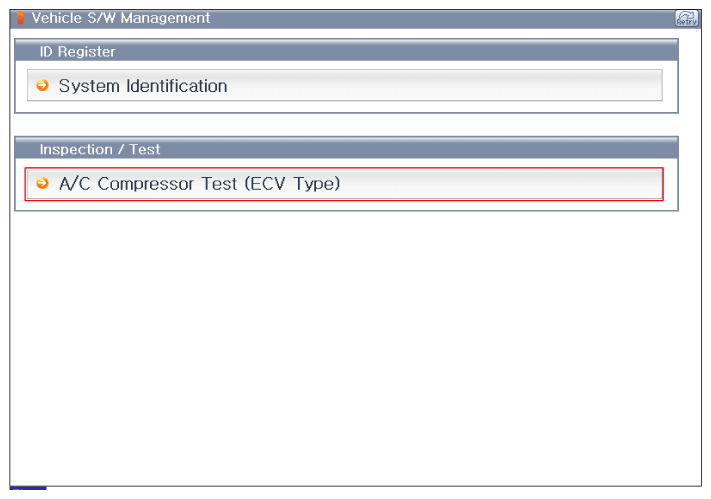

Fig 1: Screen Display - Perform A/C Compressor Test (ECV Type)

G12323372

Courtesy of KIA MOTORS AMERICA, INC.

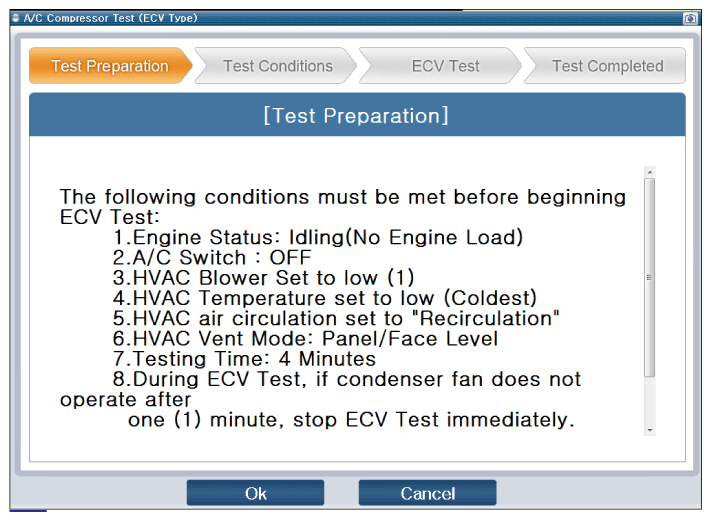

Fig 2: Screen Display - A/C Compressor Test (ECV Type), Test Preparation

G12323373

Courtesy of KIA MOTORS AMERICA, INC.

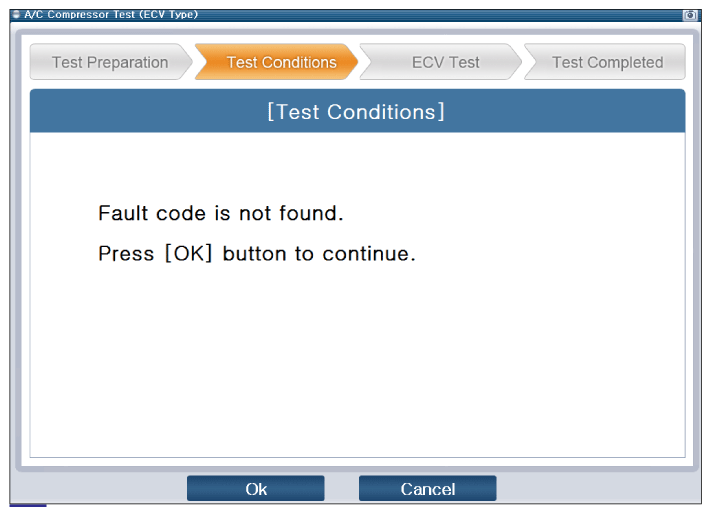

Fig 3: Screen Display - A/C Compressor Test (ECV Type), Test Condition

G12323374

Courtesy of KIA MOTORS AMERICA, INC.

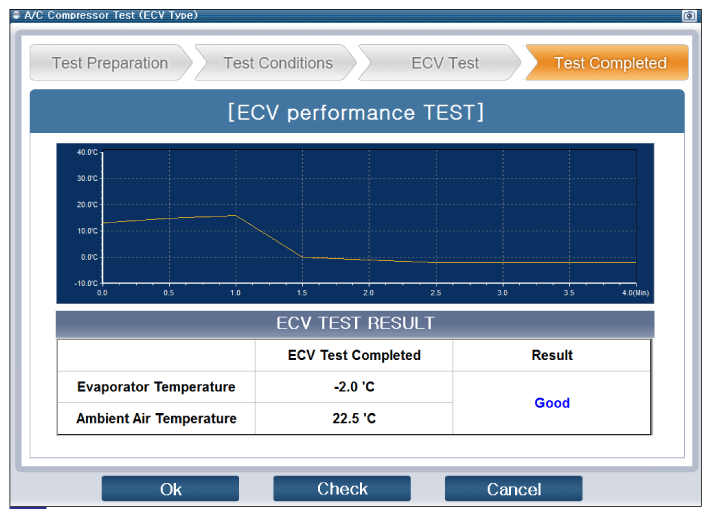

Fig 4: Screen Display - ECV Performance Test

G12323375

Courtesy of KIA MOTORS AMERICA, INC.

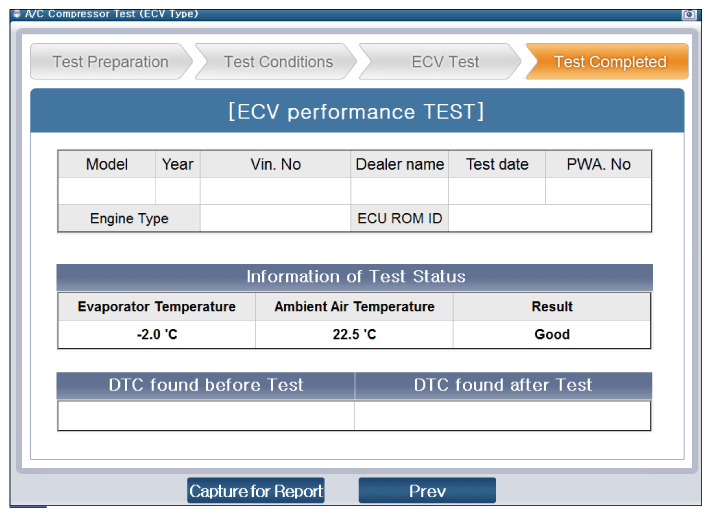

Fig 5: Screen Display - Information Of Test Status

G12323376

Courtesy of KIA MOTORS AMERICA, INC.

Good	Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good	Carefully re-do this troubleshooting guide steps. If no problems were found with the circuits or connectors, replace the blower motor and go to "VERIFICATION OF REPAIR " procedure.
