Circuit Inspection: Notes
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

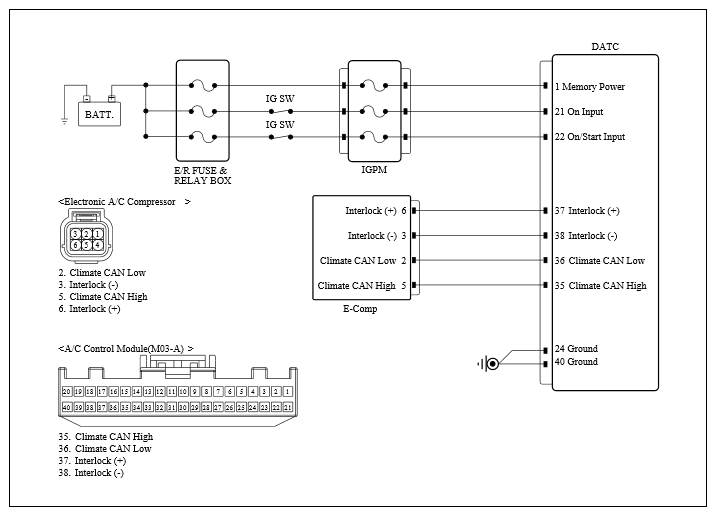

Courtesy of KIA MOTORS AMERICA, INC. E-COMP CONNECTOR SPECIFICATION
| Inspection Condition |
(+) Probe |
(-) Probe |
Specification |
| Connector |
Terminal |
Connector |
Terminal |
- Ignition "OFF".
- Disconnect the electrical connector(s) from the concerned component.
- Ignition "ON".
|
E-Comp connector |
6 (Interlock +) |
Chassis ground |
- |
B+ |
- Ignition "OFF".
- Disconnect auxiliary battery (-) cable.
- Disconnect the electrical connector(s) from the concerned component.
|
E-Comp connector |
3 (Interlock -) |
Chassis ground |
- |
below 1Ω |
| Good |
- Go to "DC Fuse Inspection" procedure below.
|
| No Good |
|
| DC Fuse Inspection |
| Inspection Procedure |
Reference |
- Ignition "OFF".

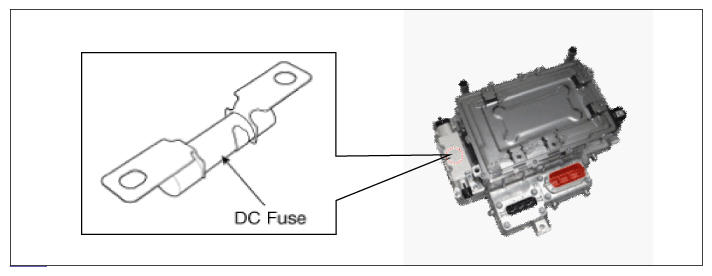

- check DC Fuse condition in the HPCU.
|
Fig 2 |
Courtesy of KIA MOTORS AMERICA, INC.
| Good |
- Go to "Interlock Line Inspection" procedure below.
|
| No Good |
|
