Repair Procedures: Inspection

  1. Switch "OFF" ignition.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY REMOVAL ")

  3. Disconnect the main connector (A).

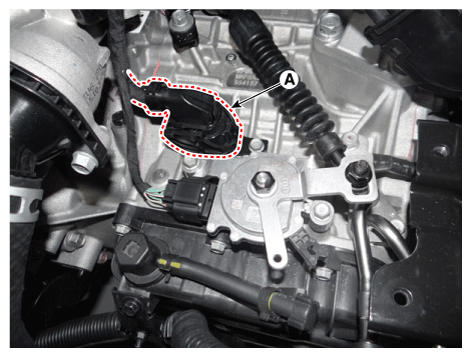

    Fig 1: Locating Main Connector
    G12293940Courtesy of KIA MOTORS AMERICA, INC.
  4. Measure the resistance between power terminal (7) and signal terminal (22).

    Specification  : 5.1 ± 0.3 Ω

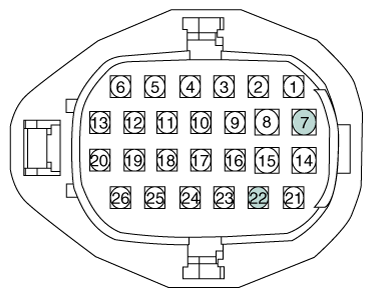

    Fig 2: Main Connector End View
    G12293941Courtesy of KIA MOTORS AMERICA, INC.
