Repair Procedures: Removal

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Engine Mechanical System - "COOLANT ")
Loosen the coolant pipe mounting bolt (A).

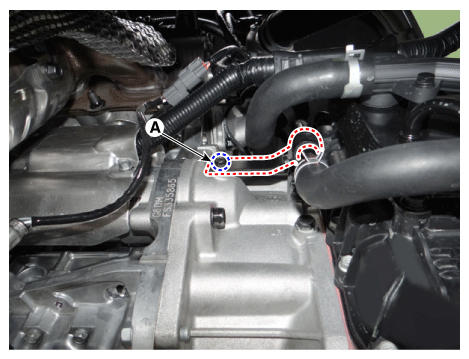

Fig 1: Locating Coolant Pipe With Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Separate the coolant hose (A).

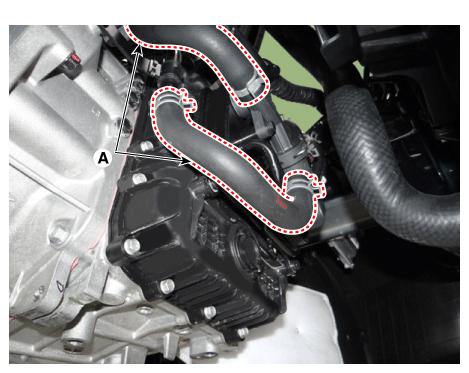

Fig 2: Locating Coolant Hose
Courtesy of KIA MOTORS AMERICA, INC.
Separate ATF cooler hose (A).

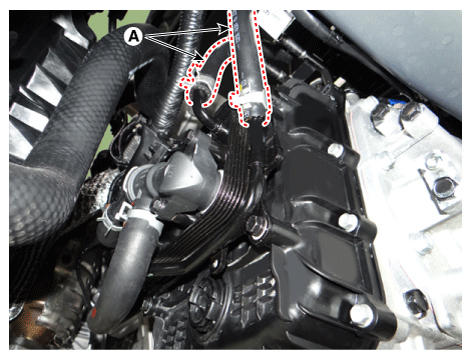

Fig 3: Locating ATF Cooler Hose
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the ATF warmer (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

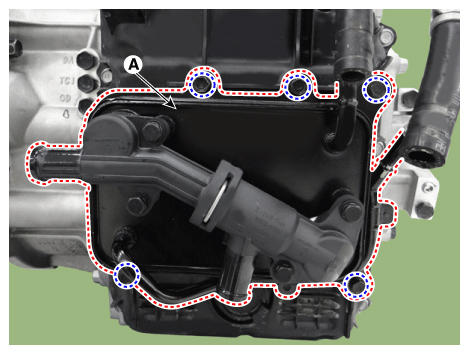

Fig 4: Locating ATF Warmer With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
