Repair Procedures: Removal

  1. Disconnect the negative battery cable, and wait for at least three minutes before beginning to work.
  2. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

  3. Loosen the nuts (A) and then disconnect the connector (B).

    Tightening torque:

    6.0 - 8.0 N.m (0.6 - 1.2 kgf.m, 4.4 - 5.9 lb.ft)

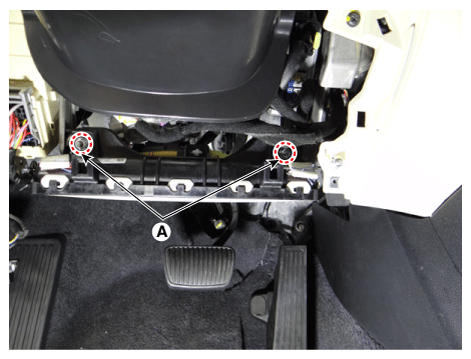

    Fig 1: Locating Knee Airbag Nuts
    G12294378Courtesy of KIA MOTORS AMERICA, INC.

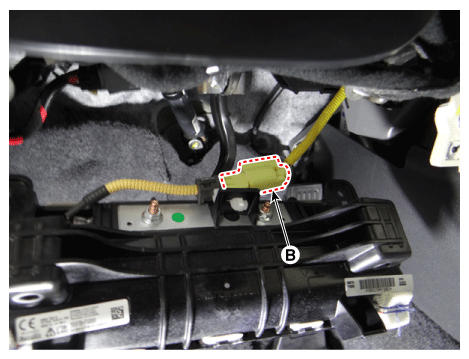

    Fig 2: Locating Knee Airbag Connector
    G12294379Courtesy of KIA MOTORS AMERICA, INC.
