Repair Procedures: Replacement

  1. Remove the crankshaft damper pulley.

    (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")

  2. Remove the front oil seal (A).

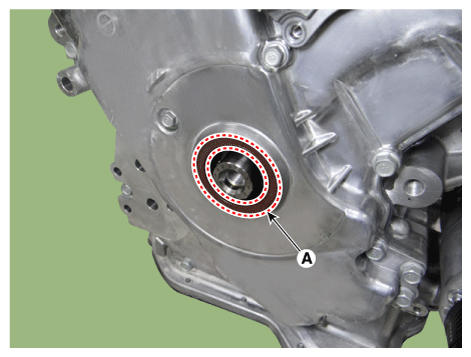

    Fig 1: Locating Front Oil Seal
    G12290361Courtesy of KIA MOTORS AMERICA, INC.
  3. Using SST (09231-3C100), install a new front oil seal.

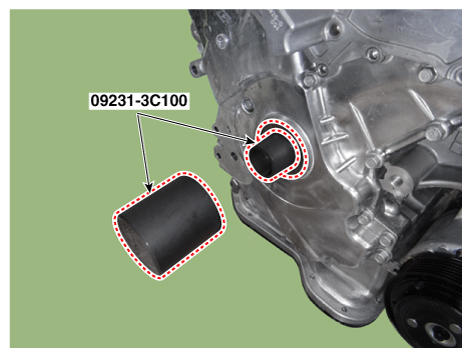

    Fig 2: Install Front Oil Seal
    G12290362Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the front oil seal.
