Water Center Pipe

Remove the water temperature control assembly.
Remove the surge tank.
(Refer to Intake and Exhaust System - "SURGE TANK ")
Remove the intake manifold.
(Refer to Intake and Exhaust System - "INTAKE MANIFOLD ")
Remove the water center pipe (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf., 7.2 - 8.7 lb.ft)

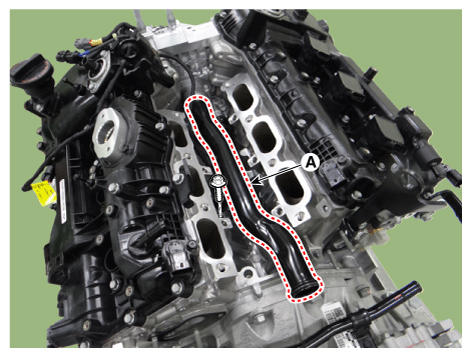

Fig 1: Removing Water Center Pipe
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not reuse water pipe O-ring.
Install in the reverse order of removal.
