Rear Bumper Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper cover.

    (Refer to Body - "REAR BUMPER COVER ")

  3. Disconnect the rear bumper antenna connector (A).

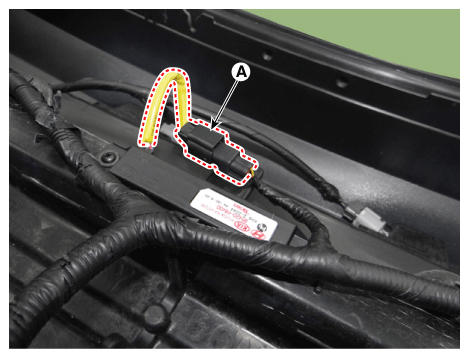

    Fig 1: Locating Rear Bumper Antenna Connector
    G12298942Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the rear bumper antenna (A) after loosening the mounting screws.

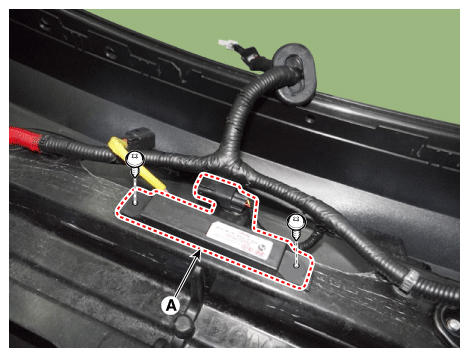

Fig 2: Locating Rear Bumper Antenna With Mounting Screws
G12298943Courtesy of KIA MOTORS AMERICA, INC.
