Home >> Kia >> 2018 >> Cadenza Technology >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Trunk Lid System >> Power Trunk Open/Close Switch >> Components And Components Location >> Components

Components And Components Location: Components

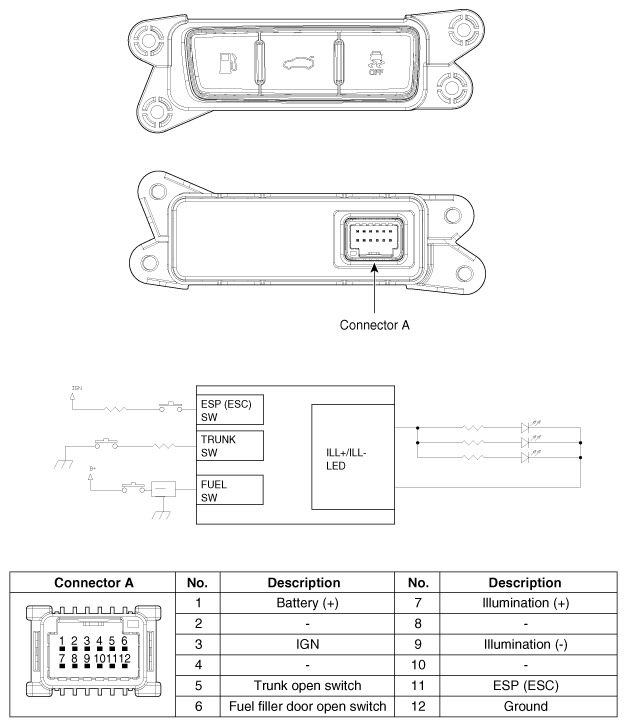

Fig 1: Locating Power Trunk Open/Close Switch With Connector End View

G12298843

Courtesy of KIA MOTORS AMERICA, INC.
