Components And Components Location: Components

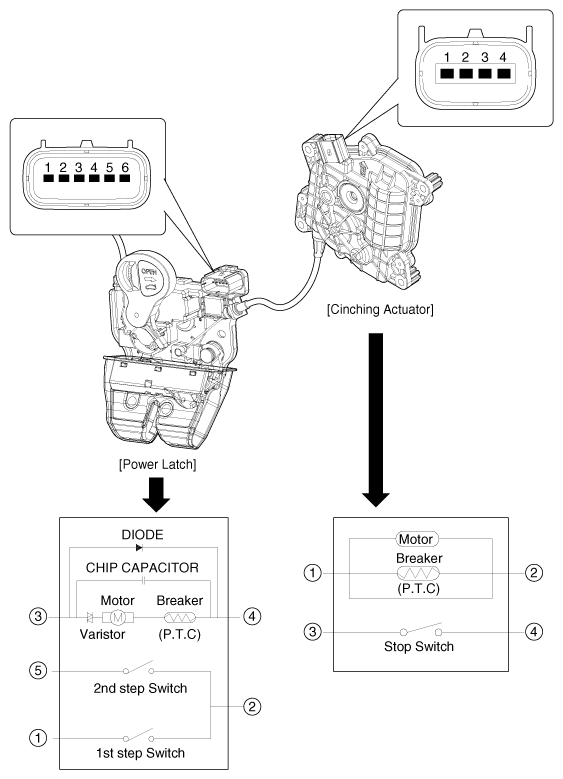

Fig 1: Power Latch Assembly Components Location

G12298828

Courtesy of KIA MOTORS AMERICA, INC.
