Clock Spring

  1. If, as a result of the following checks, even one abnormality is discovered, replace the clock spring with a new one.
  2. Check connectors and protective tube for damage, and terminals for deformities.

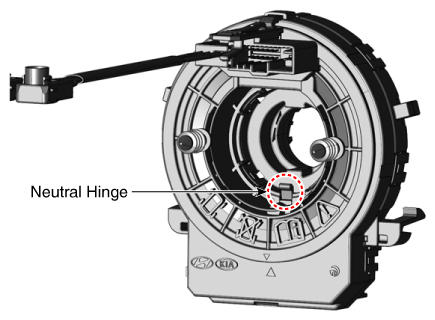

Fig 1: Neutral Hinge
G12294360Courtesy of KIA MOTORS AMERICA, INC.
