Components And Components Location: Components

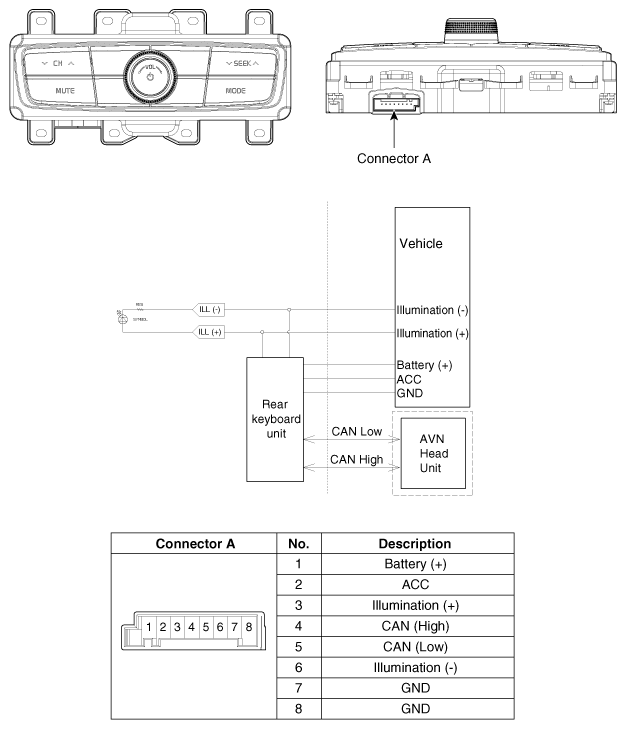

Fig 1: Rear Keyboard Unit Circuit Diagram With Connector End View

G12297280

Courtesy of KIA MOTORS AMERICA, INC.
