Components And Components Location: Components

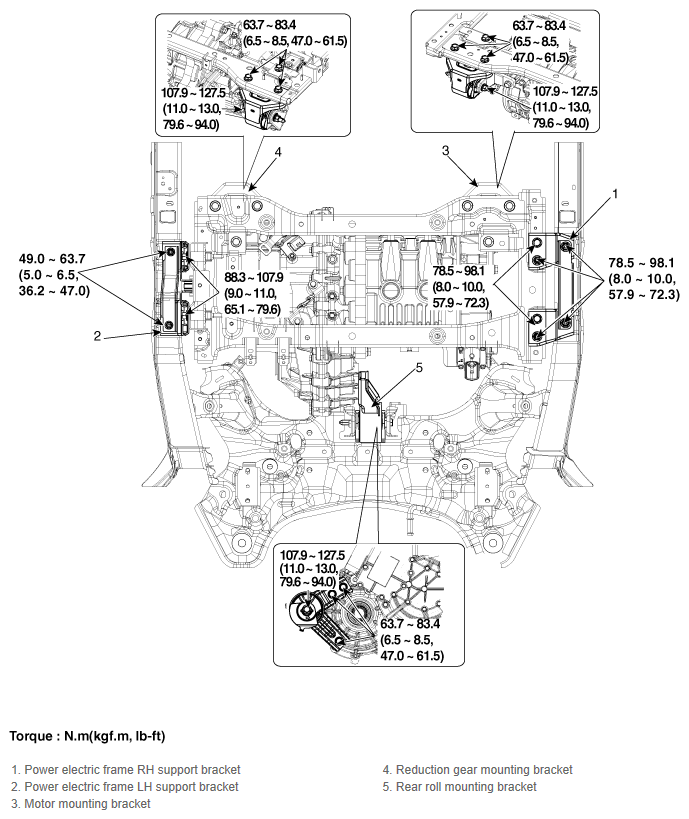

Fig 1: Motor And Reduction Gear Mounting Components With Torque Specification

G11941317

Courtesy of KIA MOTORS AMERICA, INC.
