Home >> Kia >> 2017 >> Soul EV e >> Repair and Diagnosis >> Electrical >> Charging Systems >> Electric Power Control Unit (EPCU) >> Auxiliary 12V Battery >> Components And Components Location >> Components

Components And Components Location: Components

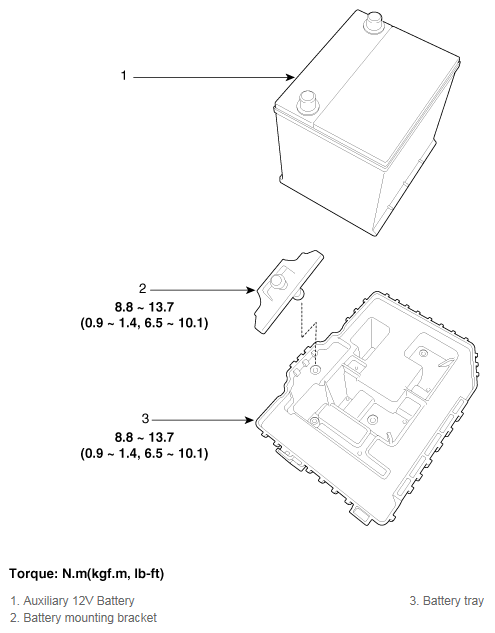

Fig 1: Battery Components With Torque Specification

G11941538

Courtesy of KIA MOTORS AMERICA, INC.
