Home >> Kia >> 2017 >> Soul EV Base >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Cooling Systems >> Motor Cooling System >> Cooling Fan >> Components And Components Location >> Components

Components And Components Location: Components

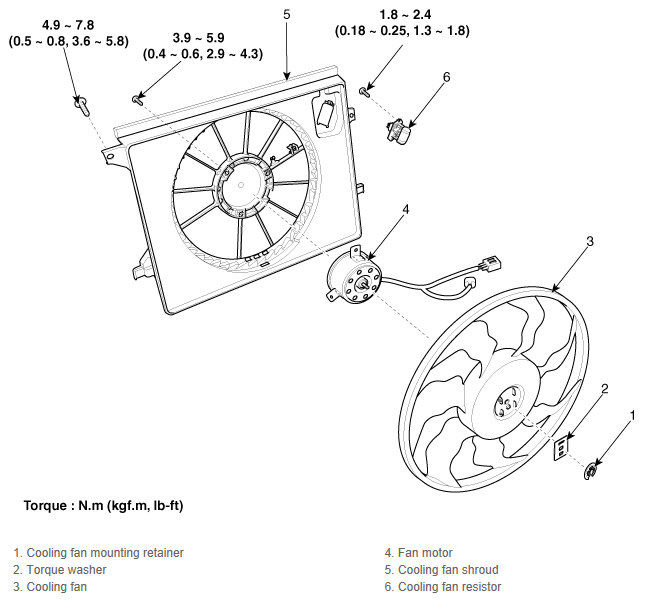

Fig 1: Cooling Fan Components With Torque Specification

G11941385

Courtesy of KIA MOTORS AMERICA, INC.
