Indicator ON/OFF Condition According To Ignition

No. Ignition conditions Start Button LED status
1 IG OFF LED OFF
2 IG ACC Amber color LED ON
3 IG ON (Engine OFF) Reddish orange color LED ON
4 Cranking Maintain LED status before cranking
5 Engine running LED OFF

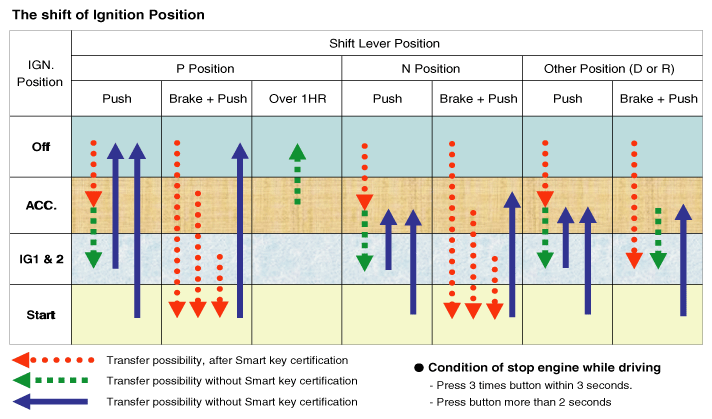

Fig 1: Shift Of Ignition Position Chart
G11934679Courtesy of KIA MOTORS AMERICA, INC.
