Switch Diagnosis

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel and turn the power on GDS.
  2. Select the vehicle model and then SMART KEY system.

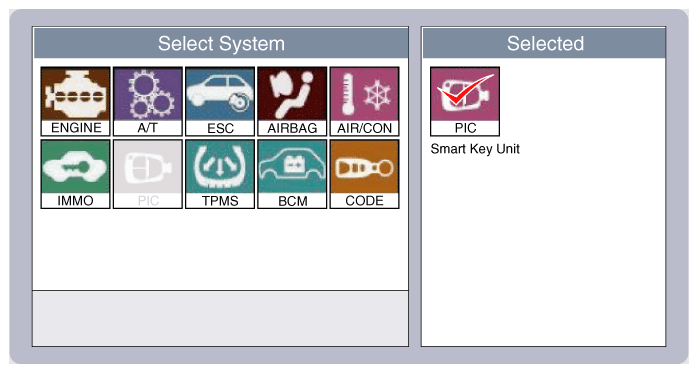

    Fig 1: Scantool Display - Smart Key Unit
    G11938123Courtesy of KIA MOTORS AMERICA, INC.
  3. Select the "SMART KEY unit".
  4. After IG ON, select the "Current data".

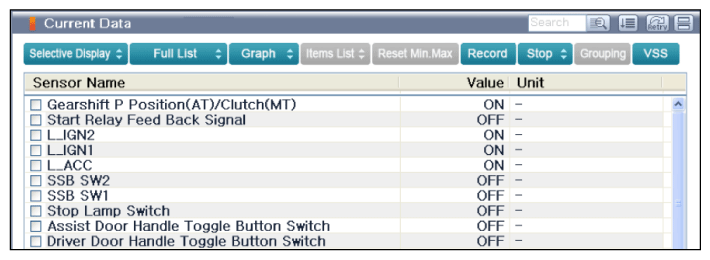

    Fig 2: Scantool Display - Current Data
    G11938124Courtesy of KIA MOTORS AMERICA, INC.
  5. This menu shows you the status of each switch on scanner after it's been connected to the "current data" process.
    Display Description
    FL Toggle switch ON: Push button is ON in the driver door handle.
    FR Toggle switch ON: Push button is ON in the assist door handle.
    Trunk switch ON: Trunk button is ON.
    Gear P Position ON: Shift lever is P position.
    IGN 1 ON: IGN switch is IG position.
    ACC ON: IGN switch is ACC position.
    Push Knob switch ON: Push knob switch is ON.
    External Buzzer ON: Buzzer is ON.
