Antenna Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

Fig 1: Scantool Display - ID Register
Courtesy of KIA MOTORS AMERICA, INC.
After IG ON, select the "Antenna Status Check".

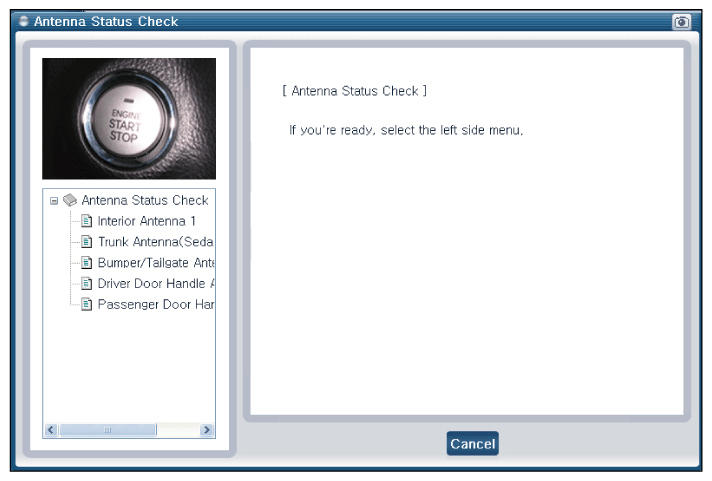

Fig 2: Scantool Display - Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
Set the smart key near the corresponding antenna and operate it using GDS.

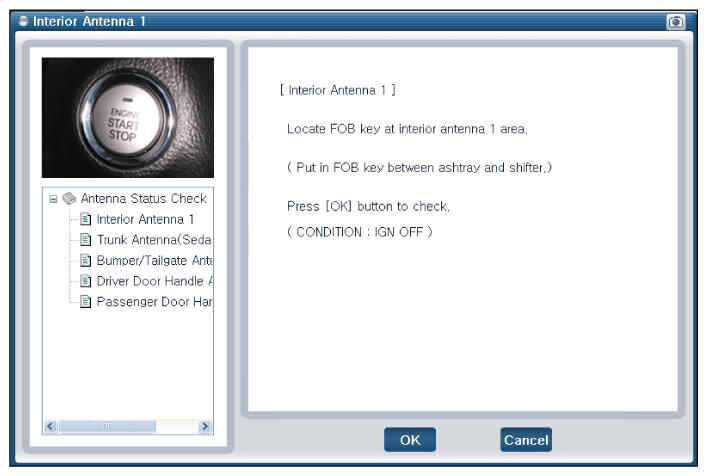

Fig 3: Scantool Display - Interior Antenna 1
Courtesy of KIA MOTORS AMERICA, INC.

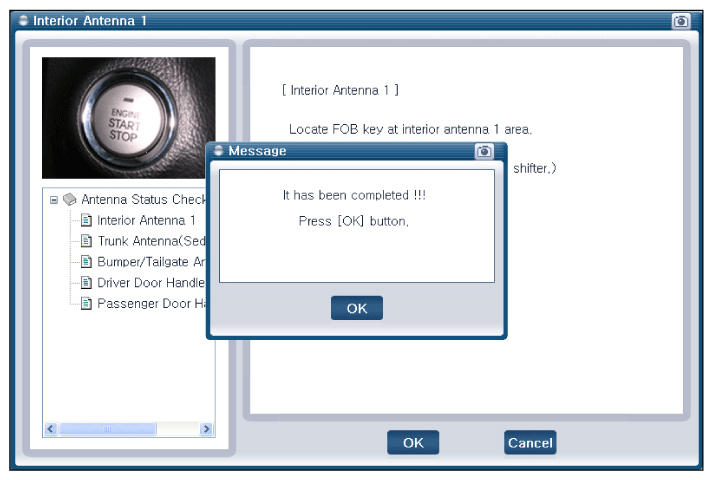

Fig 4: Scantool Display - Interior Antenna 1 (Message)
Courtesy of KIA MOTORS AMERICA, INC.
If the smart key operates normally, it means that the corresponding antenna, smart key (transmission & reception) and exterior receiver are also normal.
Antenna status
- INTERIOR Antenna
- Trunk antenna
- BUMPER/Antenna
- DRV_DR Antenna
- AST_DR Antenna
