Monitor DTC Status

Connect GDS to Data Link Connector (DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.

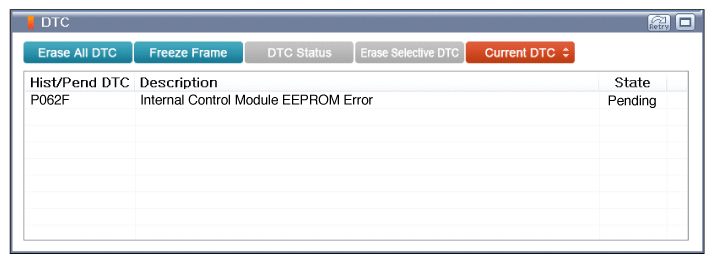

Fig 1: Screen Display - DTC Description
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present (Pending)?
YES
- Go to next procedure.
NO
- Erase the DTCs that stored as history, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
If the Pending DTC, select "Freeze Frame" (Fig 2) and monitor "Information Code" (Fig 3).

Fig 2: Screen Display - Diagnostic Trouble Codes (DTC) With GDS
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Screen Display - Freeze Frame - Information Code (22)
Courtesy of KIA MOTORS AMERICA, INC.

Perform applicable repair procedure for "Information Code" and perform following procedure.

Information Code	Possible cause
22	EEPROM module malfunction occurred
