[Sensor Status initialization]

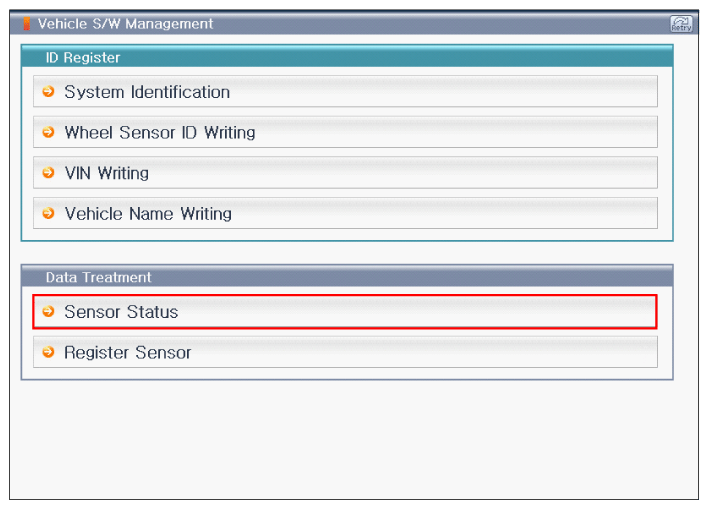

Fig 1: Scantool Display - Vehicle S/W Management
G12229352Courtesy of KIA MOTORS AMERICA, INC.

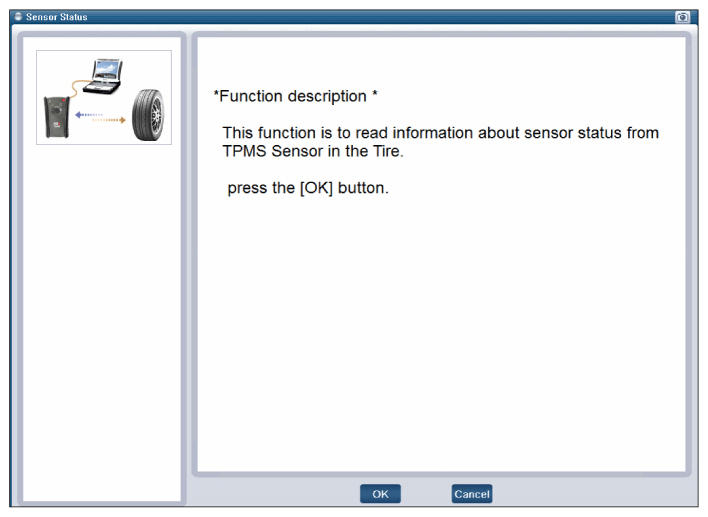

Fig 2: Scantool Display - Sensor Status (Function Description)
G12229353Courtesy of KIA MOTORS AMERICA, INC.

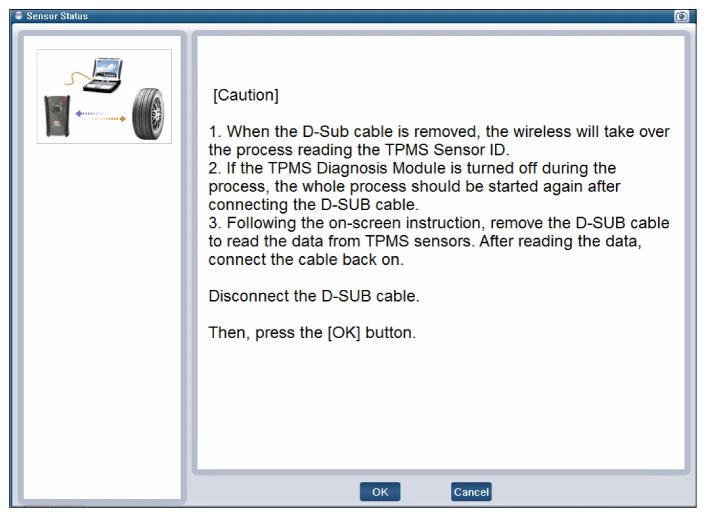

Fig 3: Scantool Display - Sensor Status (Caution)
G12229354Courtesy of KIA MOTORS AMERICA, INC.

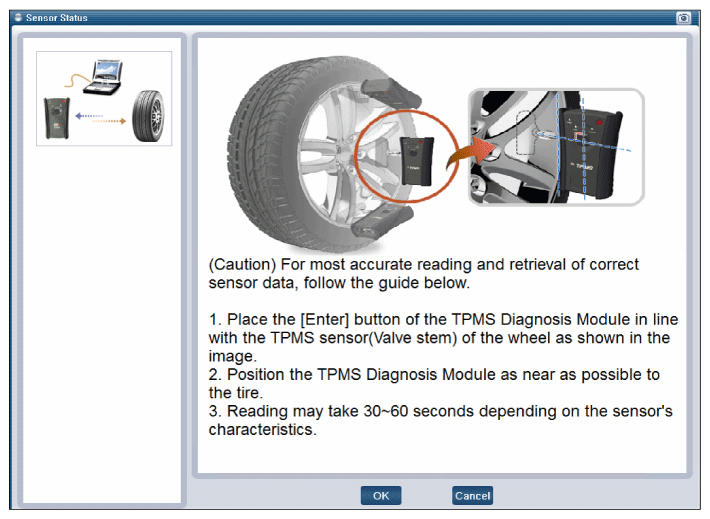

Fig 4: Scantool Display - Sensor Status
G12229355Courtesy of KIA MOTORS AMERICA, INC.

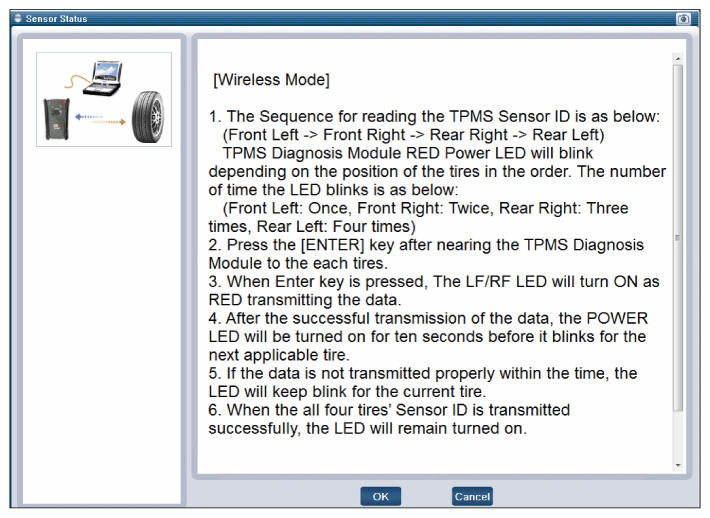

Fig 5: Scantool Display - Sensor Status (Wireless Mode)
G12229356Courtesy of KIA MOTORS AMERICA, INC.

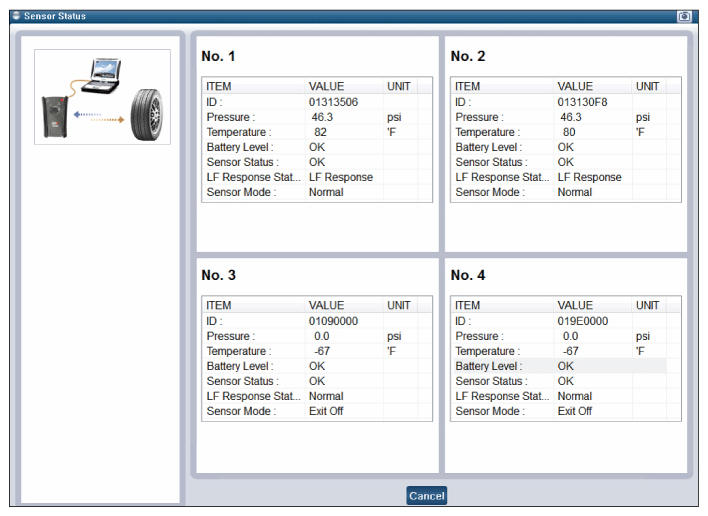

Fig 6: Scantool Display - Sensor Status
G12229357Courtesy of KIA MOTORS AMERICA, INC.
