Component Inspection

■ Perform Fuel Pump Relay Actuation Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON", Engine "OFF".
3. Perform "Actuation Test  " for Fuel Pump.

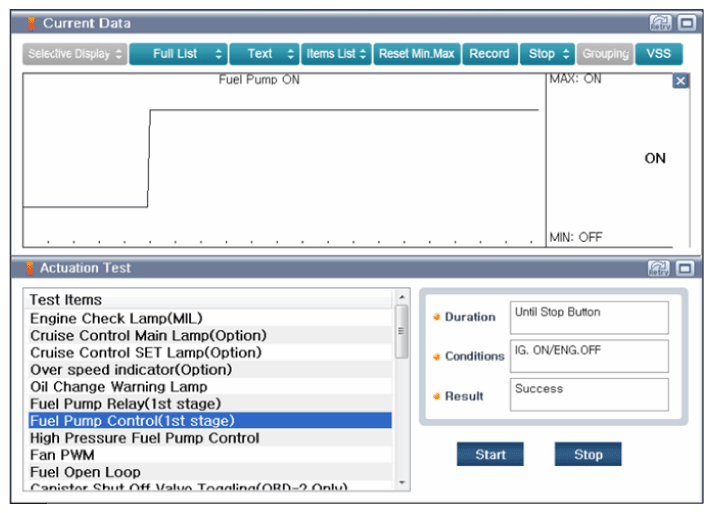

   Fig 1: Scantool Display - Fuel Pump Control (1st Stage) Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.

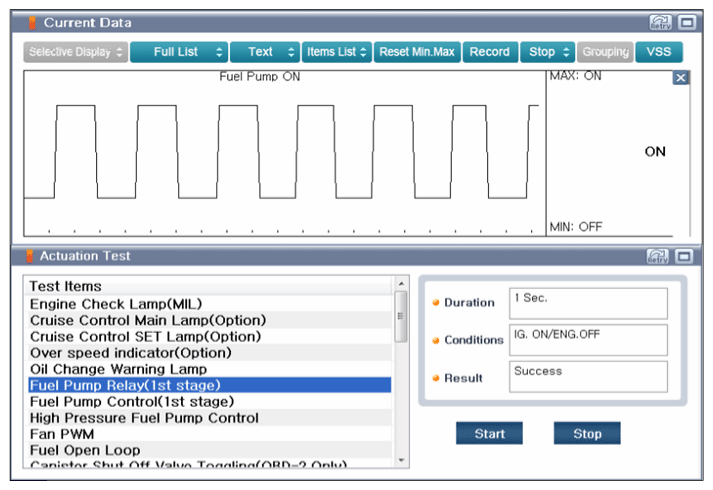

   Fig 2: Scantool Display - Fuel Pump Relay (1st Stage) Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the Fuel Pump operate properly? (Check variation)

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Substitute with a known-good Fuel Pump Relay and check for proper operation. If the problem is corrected, replace Fuel Pump Relay and then go to "Verification of Vehicle Repair " procedure.
