Soul Base, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - 1.6L
>>
Underdrive Brake Control Solenoid Valve(UD/B_VFS)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

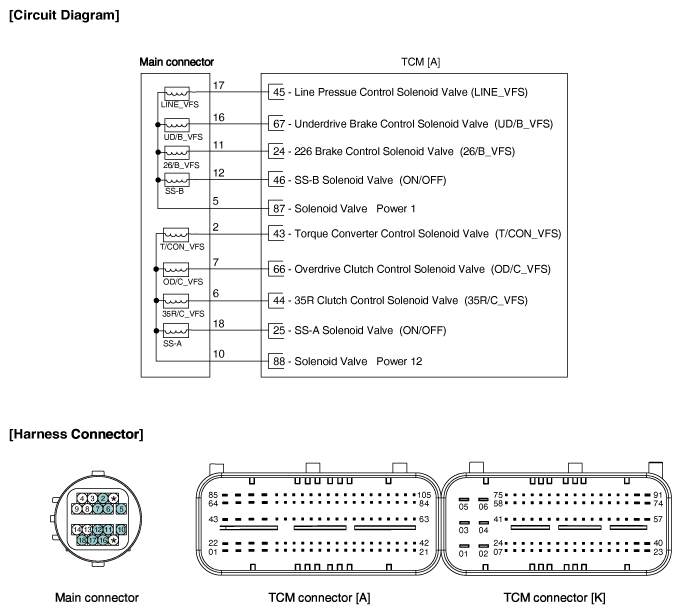

Fig 1: Underdrive Brake Control Solenoid Valve Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
