Repair Procedures: Installation

Install in the reverse order of removal.
NOTE:
- Check the code (oil pressure characteristics value) at the first before installing the solenoid valve.

  Fig 1: Oil Pressure Characteristics Value Code
  Courtesy of KIA MOTORS AMERICA, INC.
- The existing valve body cover gasket (A) must be replaced with a new one. (Do not reuse it.)

  Fig 2: Locating Valve Body Cover Gasket
  Courtesy of KIA MOTORS AMERICA, INC.
Perform the procedures below after installing.
1. Refill the automatic transaxle with fluid.
  (Refer to Hydraulic System - "FLUID ")
2. Clear the diagnostic trouble codes (DTC) using the KDS/GDS. Disconnecting the battery negative terminal will not clear the DTCs. Clear DTCs using the KDS/GDS at all times.
3. Reset the automatic transaxle adaptive values using the KDS/GDS.

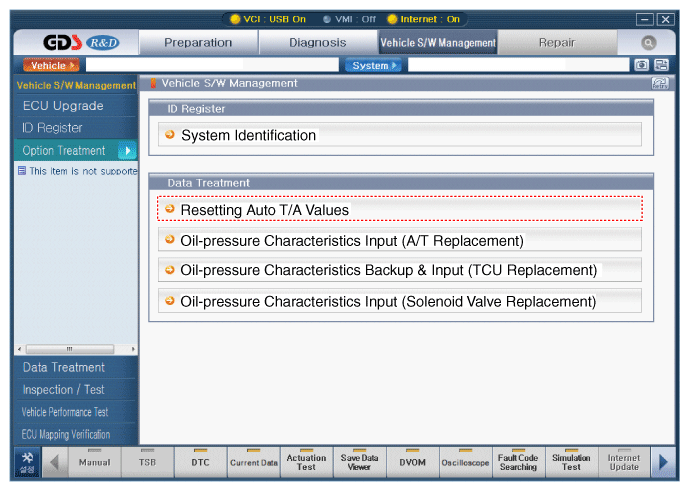

  Fig 3: Scantool Display - Vehicle S/W Management
  Courtesy of KIA MOTORS AMERICA, INC.

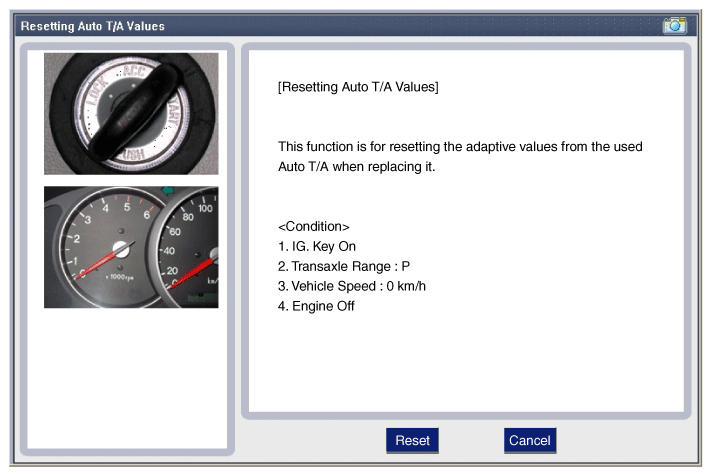

  Fig 4: Scantool Display - Resetting Automatic Transaxle Adaptive Values
  Courtesy of KIA MOTORS AMERICA, INC.
4. Perform the oil pressure characteristics input procedure using the KDS/GDS.

  Fig 5: Scantool Display - Oil Pressure Characteristics Input Procedure
  Courtesy of KIA MOTORS AMERICA, INC.

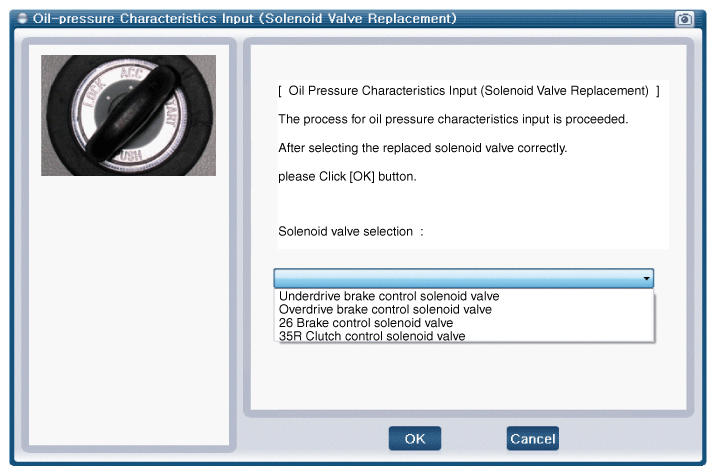

  Fig 6: Scantool Display - Oil Pressure Characteristics Input (Solenoid Valve Replacement)
  Courtesy of KIA MOTORS AMERICA, INC.

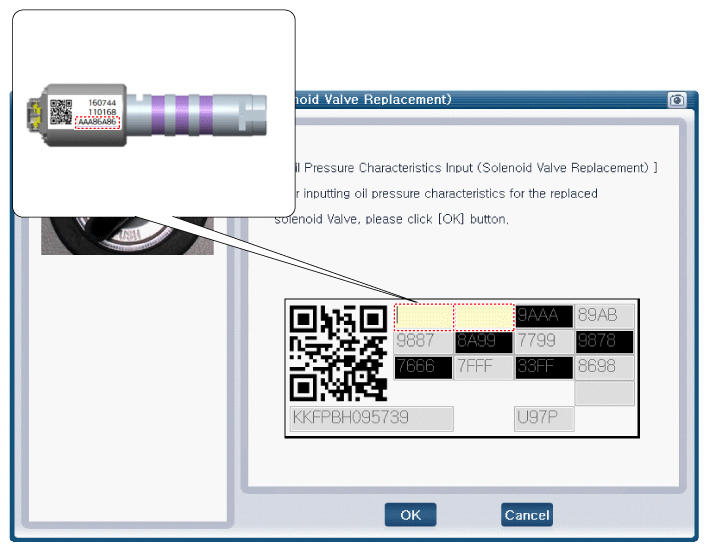

  Fig 7: Scantool Display - Oil Pressure Characteristics Value Code
  Courtesy of KIA MOTORS AMERICA, INC.
5. Perform the TCM adaptive values learning procedure.
  (Refer to Automatic Transaxle Control System - "ADJUSTMENT ")
6. After installing, check for leakage of coolant or fluid from hose connection during engine start.
