System Circuit Diagram

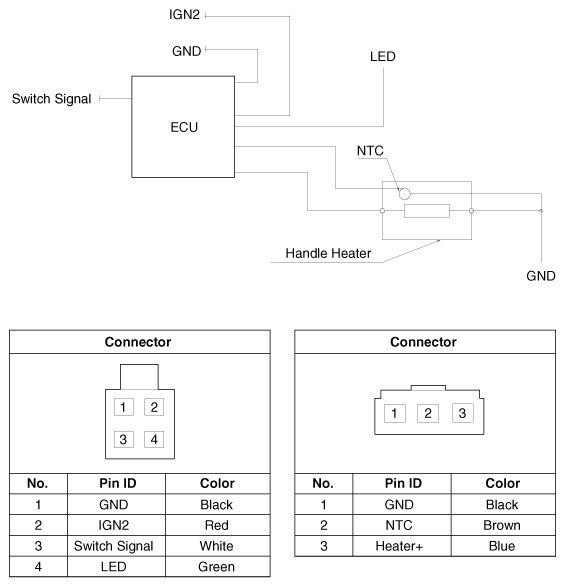

Fig 1: Heated Steering Wheel System Circuit Diagram And Connector End View

G12229503

Courtesy of KIA MOTORS AMERICA, INC.
