Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

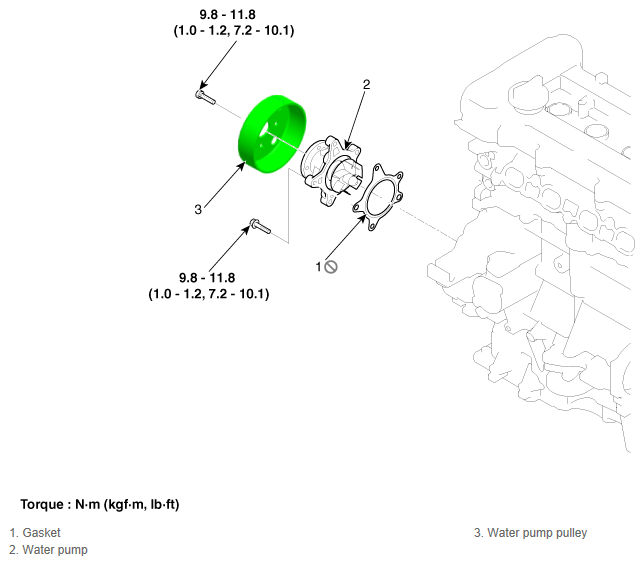

Fig 1: Water Pump Components With Torque Specification
G12231003Courtesy of KIA MOTORS AMERICA, INC.
