Home >> Kia >> 2017 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 1.6L >> Muffler And Catalytic Converter >> Components And Components Location >> Components

Components And Components Location: Components

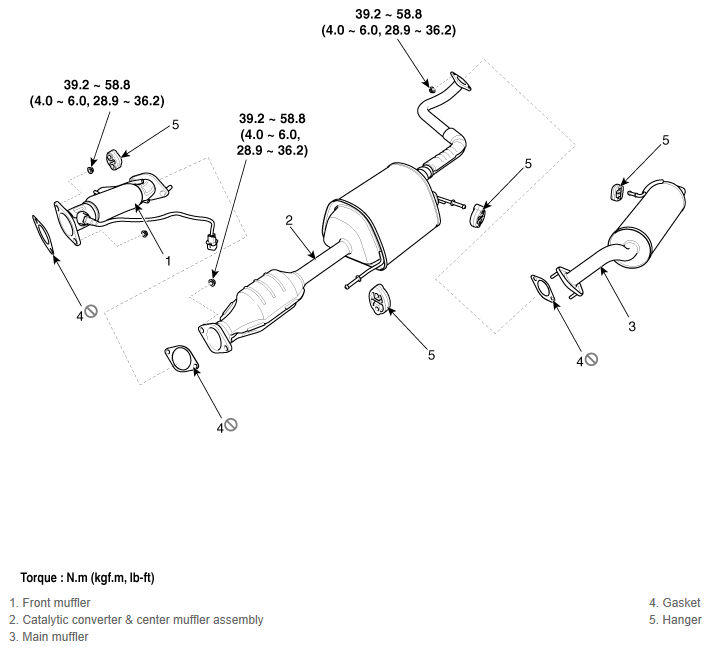

Fig 1: Muffler And Catalytic Converter Components Location With Torque Specification

G12226989

Courtesy of KIA MOTORS AMERICA, INC.
