Charging System - 1.6L: Battery: Troubleshooting

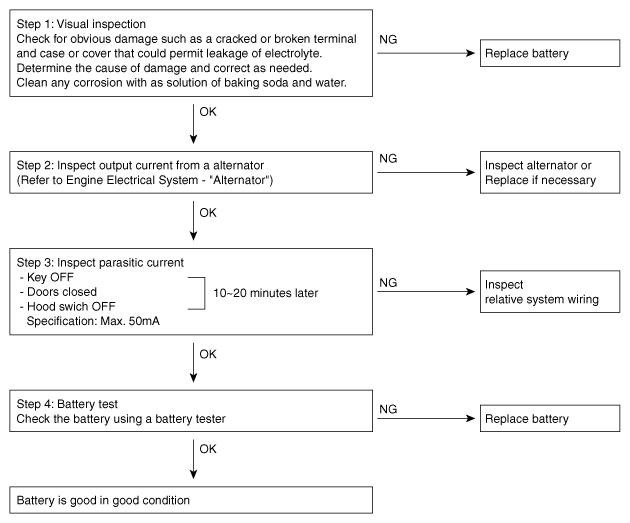

Fig 1: Battery Troubleshooting Chart

G12227088

Courtesy of KIA MOTORS AMERICA, INC.
