Home >> Kia >> 2017 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> TJ Joint >> Components And Components Location >> Components >> [LH]

Components And Components Location: Components: [LH]

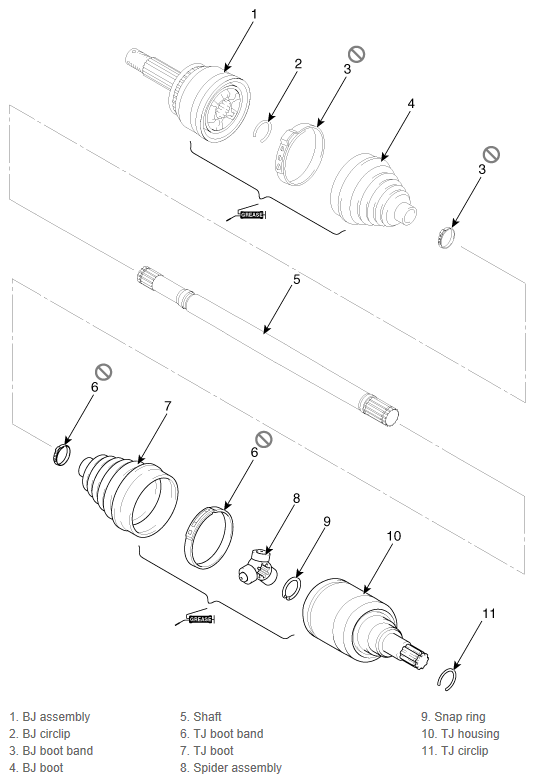

Fig 1: Exploded View Of TJ Joint (LH)

G12227779

Courtesy of KIA MOTORS AMERICA, INC.
