Home >> Kia >> 2017 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> Dynamic Damper >> Components And Components Location >> Components

Components And Components Location: Components

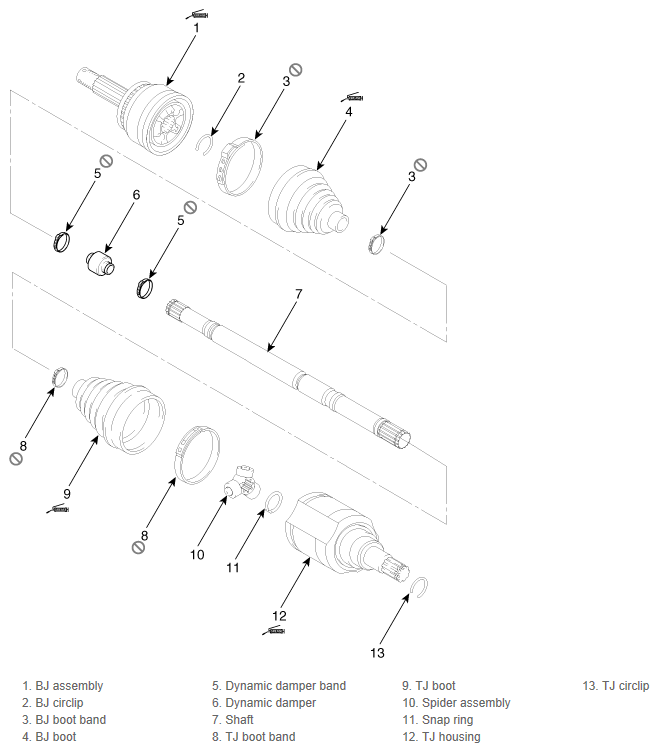

Fig 1: Exploded View Of Dynamic Damper

G12227793

Courtesy of KIA MOTORS AMERICA, INC.
