Components And Components Location: Components

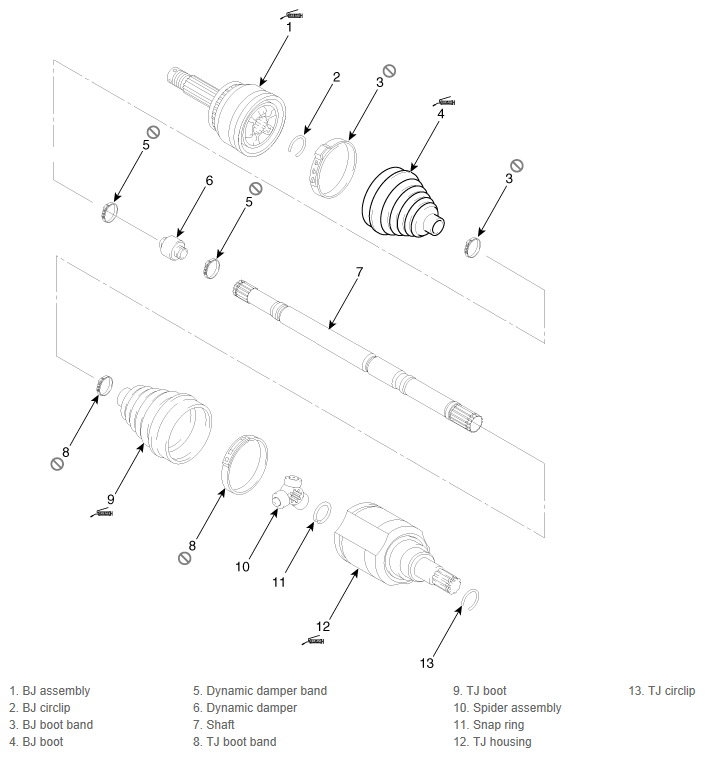

Fig 1: Exploded View Of BJ Boot

G12227798

Courtesy of KIA MOTORS AMERICA, INC.
