Home >> Kia >> 2017 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Electro Chromic Inside Rear View Mirror >> Components And Components Location >> Components

Components And Components Location: Components

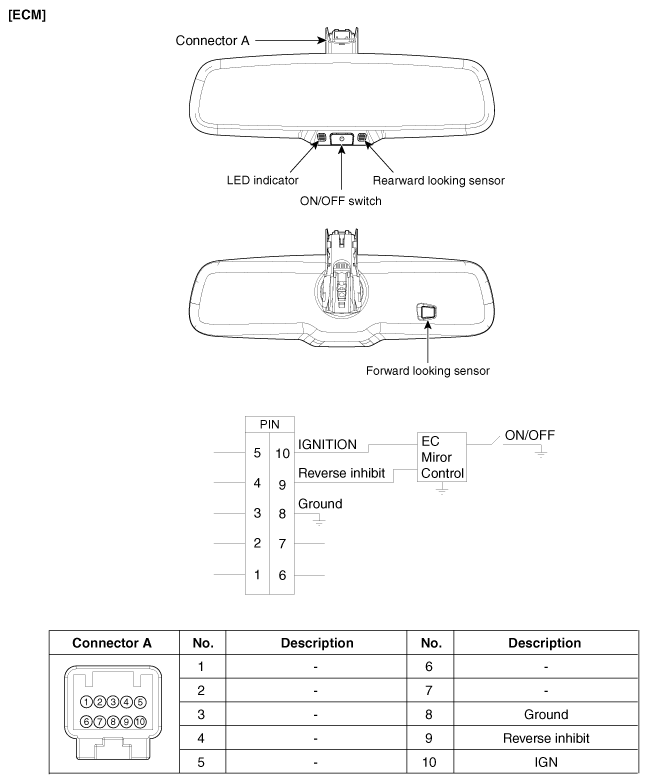

Fig 1: Electro Chromic Inside Rear View Mirror Circuit Diagram And Connector End View

G12235386

Courtesy of KIA MOTORS AMERICA, INC.
