Components (1)

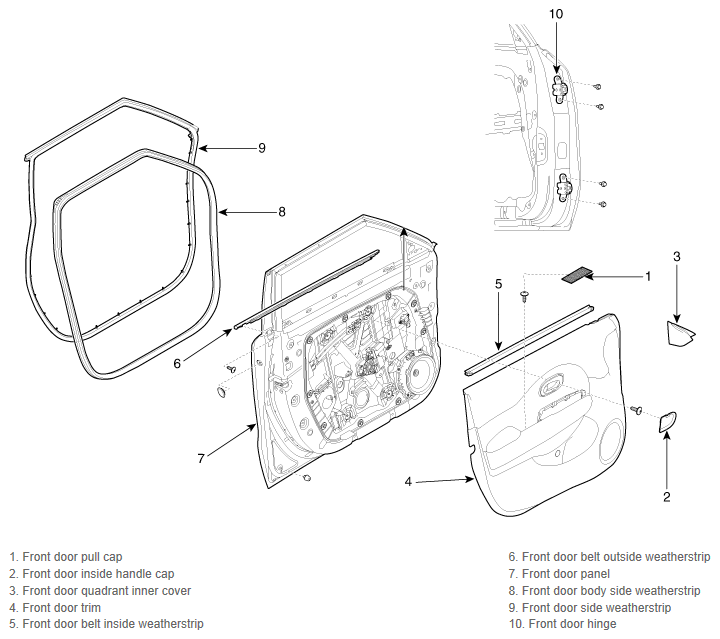

Fig 1: Front Door Components Location (1)
G12225855Courtesy of KIA MOTORS AMERICA, INC.
