Components And Components Location: Components

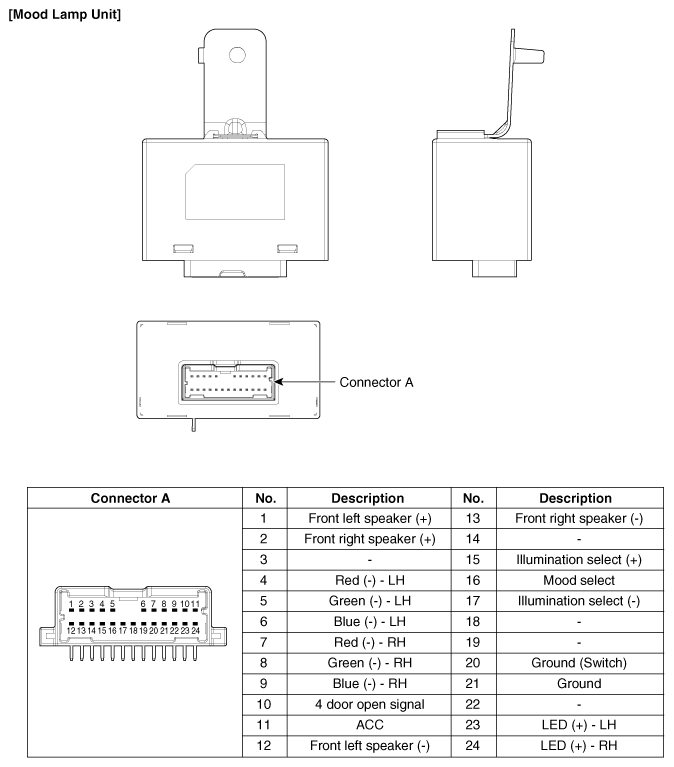

Fig 1: Mood Lamp Connector Description Chart (1 Of 2)
G12235710Courtesy of KIA MOTORS AMERICA, INC.

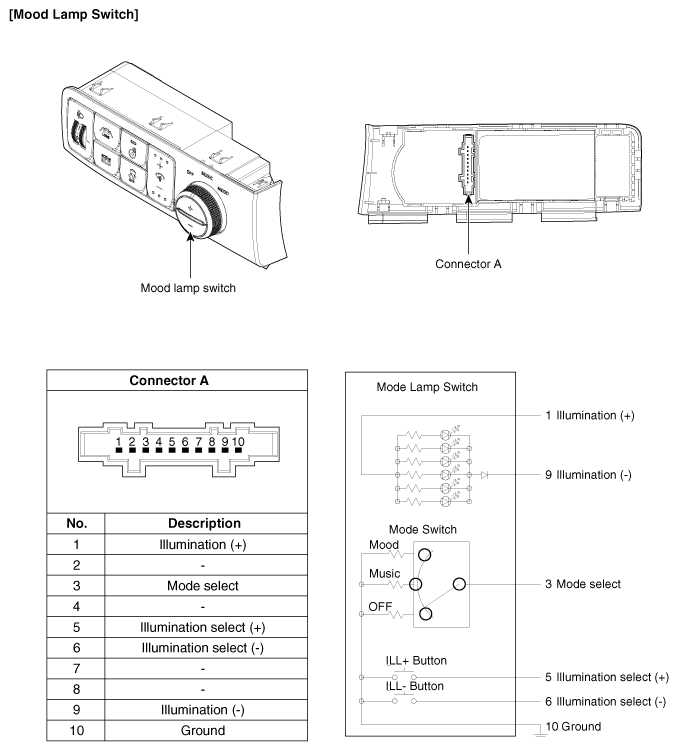

Fig 2: Mood Lamp Connector Description Chart (2 Of 2)
G12235711Courtesy of KIA MOTORS AMERICA, INC.
