Circuit Diagram
Circuit Diagram

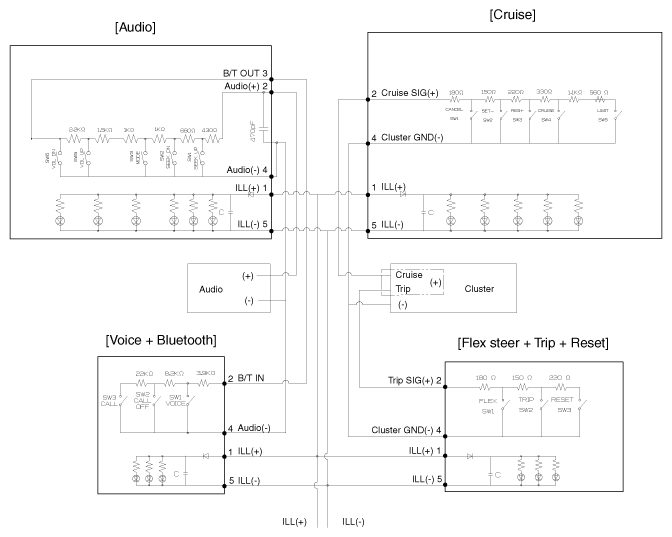

Fig 1: Audio Remote Control Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

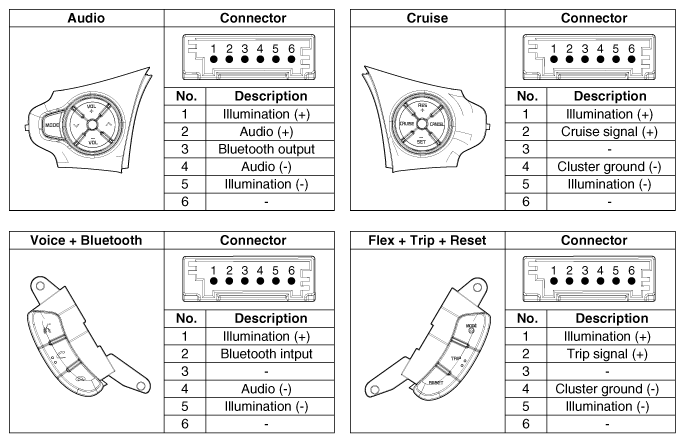

Fig 2: Audio Remote Control Connector End View Description Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
