Monitor DTC Status

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON"
  3. Select correct Vehicle Model, Year, and Engine Type.
  4. Select "BCM (All Items)" and "SMK" system. (1)
  5. Select "Fault Code Searching". (2)

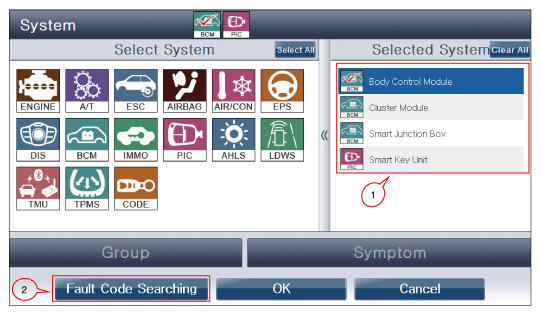

    Fig 1: Scantool Display - BCM (All Items) And SMK
    G12209193Courtesy of KIA MOTORS AMERICA, INC.
  6. Monitor DTCs in selected systems.
    Fig 2: Scantool Display - Fault Code Searching
    G12209194Courtesy of KIA MOTORS AMERICA, INC.
  7. Does selected system have any CAN related DTCs or failed to communicate via KDS/GDS?

    YES

    • Repair any CAN related DTCs first and then carefully re-do this troubleshooting guide steps.
    • If problem still occurs, go to "Wiring Inspection " procedure.

    NO

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "Verification Of Vehicle Repair " procedure.
