Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Engine "ON".
  3. Operate shift lever.
  4. Monitor "Shift Lever Switch" and "Sports Mode Select" parameter in "Current Data  " with KDS/GDS.

    Specification:  Refer to figure below

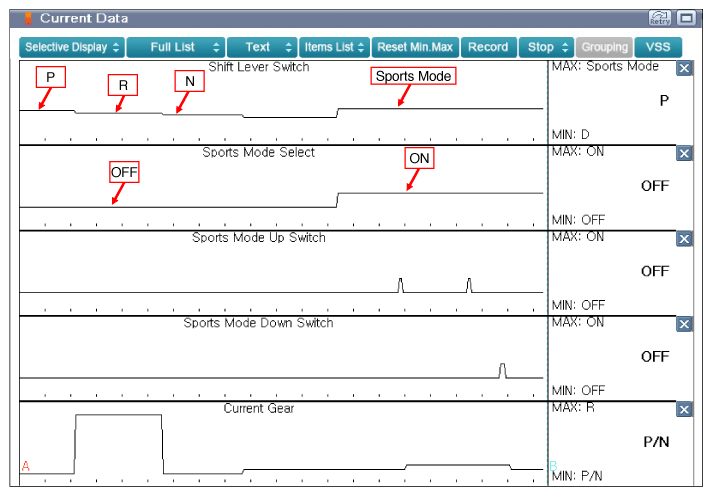

    Fig 1: Screen Display - Normal Data Operating Shift Lever Switch
    G12225261Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the measured value within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.
