Monitor KDS/GDS Data

  1. Ignition "OFF".
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Shift gear lever to "P", "R", "N", "D" and "Sports".
  4. Monitor "Shift Lever Switch" and "Current Gear" parameters in "Current Data  " in KDS/GDS.

    Specification:  Refer to figure below

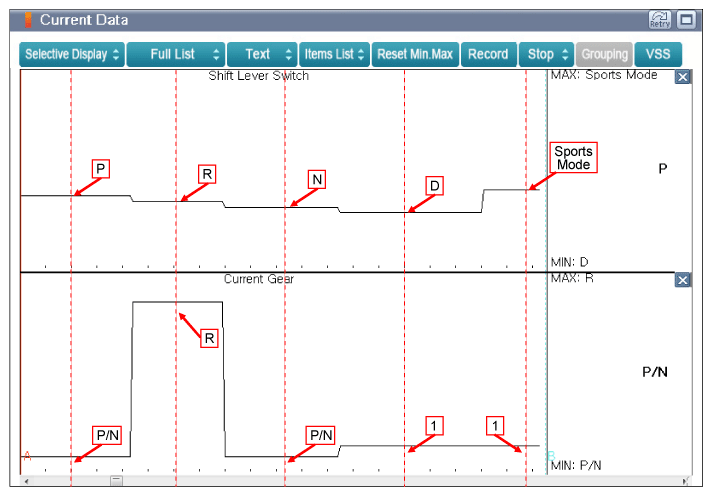

    Fig 1: Screen Display - Shift Lever Switch And Current Gear Data Shifting Gear Lever
    G12225090Courtesy of KIA MOTORS AMERICA, INC.
  5. Is displayed parameter within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.
