Components And Components Location: Components

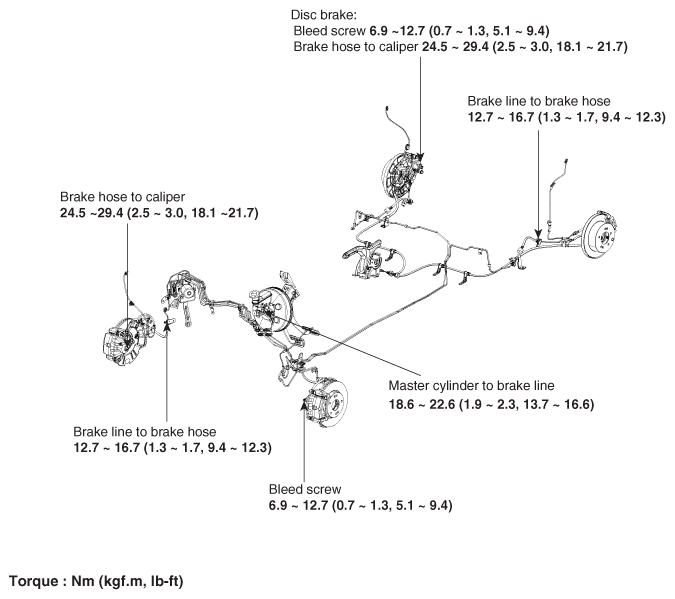

Fig 1: Brake Line Components Location With Torque Specification
G12229630Courtesy of KIA MOTORS AMERICA, INC.
WARNING: When installing brake hose, be sure to comply with the torque specification to prevent twisted hose.
