Signal Waveform

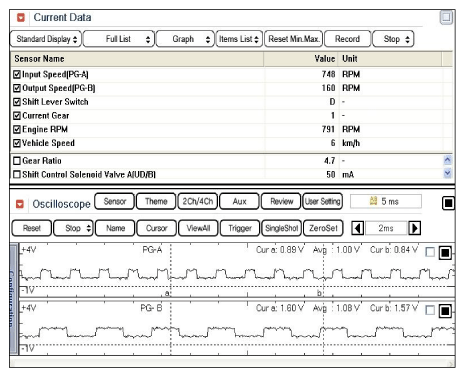

Fig 1: Scantool Display - Input/Output Speed Sensor At Low Speed
G12239364Courtesy of KIA MOTORS AMERICA, INC.

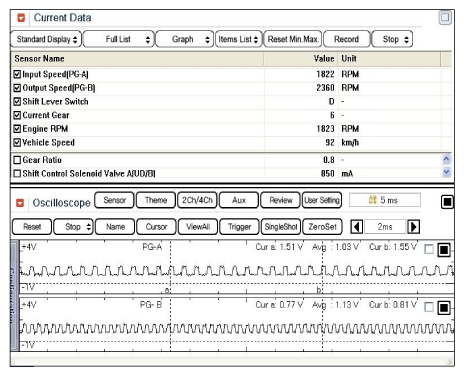

Fig 2: Scantool Display - Input/Output Speed Sensor At High Speed
G12239365Courtesy of KIA MOTORS AMERICA, INC.
