Home >> Kia >> 2017 >> Soul + >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 2.0L >> Inhibitor Switch >> Troubleshooting

Inhibitor Switch: Troubleshooting

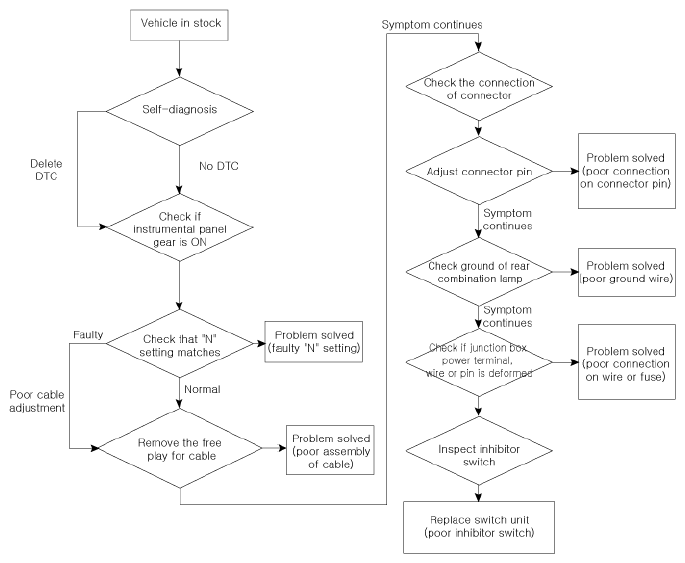

Fig 1: Inhibitor Switch Troubleshooting Chart

G12239489

Courtesy of KIA MOTORS AMERICA, INC.
